    NPEXA-H21

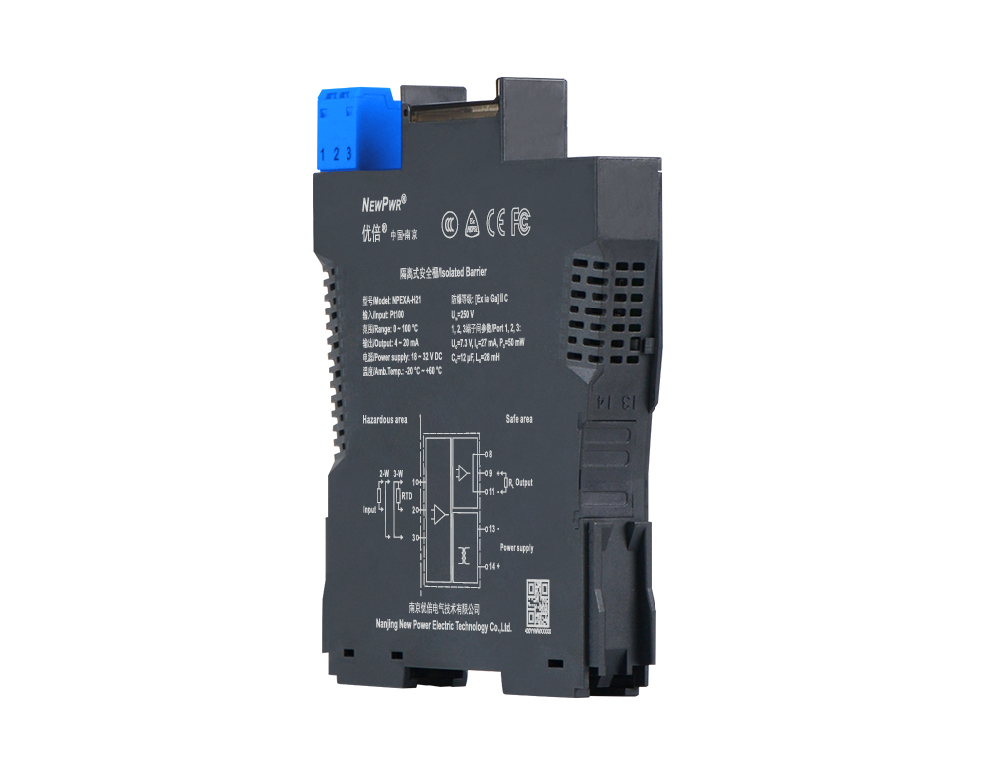

                Temperature input isolated barrier, it converts the thermal resistance signals from a hazardous area into 4~20mA signals to a safe area by isolation. It needs a backplane power supply. The input, output, and power supply are galvanically isolated from each other. The self-test function is also available on this device. Calibrate the apparatus or modify parameters by using a handheld programmer.










    Input signal












    Output signal












    Channels












    Power Supply Mode

















                Share


















    NPEXA-H21












    【Core technology】
    【Installation and disposal】



    Apparatus installation                            Apparatus disposal




    Backplan installation                                Backplan disposal














    Supply







                          Power supply
                          18 ~ 32 V DC









    Input







                          Input signal
                          Pt100, Cu100, Cu50, BA1, BA2, etc.





                          Line resistance
                          ≤ 20 Ω per line









    Output







                          Output signal
                          4 ~ 20 mA





                          Load resistance
                          RL ≤ 500 Ω









    Transfer characterisics







                          Conversion accuracy-Pt100
                          -200 ℃ ~ +850 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.





                          Conversion accuracy-Cu50
                          -50 ℃ ~ +150 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.





                          Conversion accuracy-Cu100
                          -50 ℃ ~ +150 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.





                          Temperature drift
                          0.01%F.S./℃









    General parameters







                          Response time
                          ≤ 1 s





                          Power dissipation
                          1.0 W









    EMC data







                          Electromagnetic compatibility
                          IEC 61326-3-1





                          Dielectric strength
                          ≥ 2500V AC (intrinsically safe side / non-intrinsically safe side); ≥ 500V AC (Power supply /non-intrinsically safe side)





                          Insulation resistance
                          ≥ 100 MΩ (Input /Output/Power supply)









    Operating conditions







                          Operation temperature
                          -20 ℃ ~ +60 ℃





                          Storage temperature
                          -40 ℃ ~ +80 ℃





                          Suitable location
                          Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6









    State







                          Output states
                          Whatever input fault status (except breakage), the output follows the input within measuring range. And the maximum value would not exceed the 110% of the upper limit of the measuring range (e.g. When the output signal type is 0 ~ 20mA, the minimum output value may be 0mA, the maximum output value would not exceed 22mA)









    Mechanical specifications







                          Connection method
                          Screw connection





                          Dimension
                          15.8mm (W) × 121.6mm (H) × 104.8mm (D)





                          Mounting type
                          DIN35 mm









    Certified data







                          Product approvals
                          NEPSI, CE, FCC, CCC





                          Ex marking
                          [Ex ia Ga]ⅡC





                          Um
                          250 V





                          Uo
                          7.3 V (Terminals 1, 2, 3)





                          Io
                          27 mA (Terminals 1, 2, 3)





                          Po
                          50 mW (Terminals 1, 2, 3)





                          Co
                          12 μF (Terminals 1, 2, 3)





                          Lo
                          28 mH (Terminals 1, 2, 3)
