                                        CN

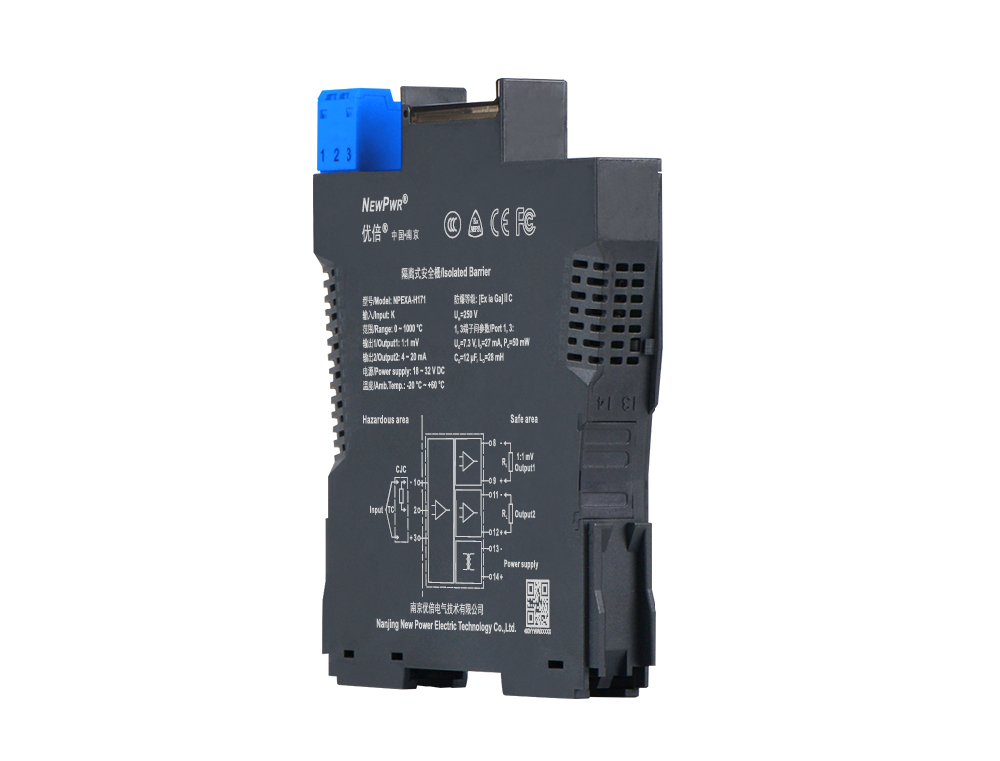

    NPEXA-H171









                Temperature input isolated barrier, it converts the thermocouple signals from a hazardous area into 1:1mV and 4~20mA signals to a safe area by isolation. It has external cold junction compensation terminals. It needs a backplane power supply. The input, output, and power supply are galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.










    Input signal












    Output signal













    Channels












    Power Supply Mode

















                Share


















    NPEXA-H171












    【Core technology】
    【Installation and disposal】



    Apparatus installation                            Apparatus disposal

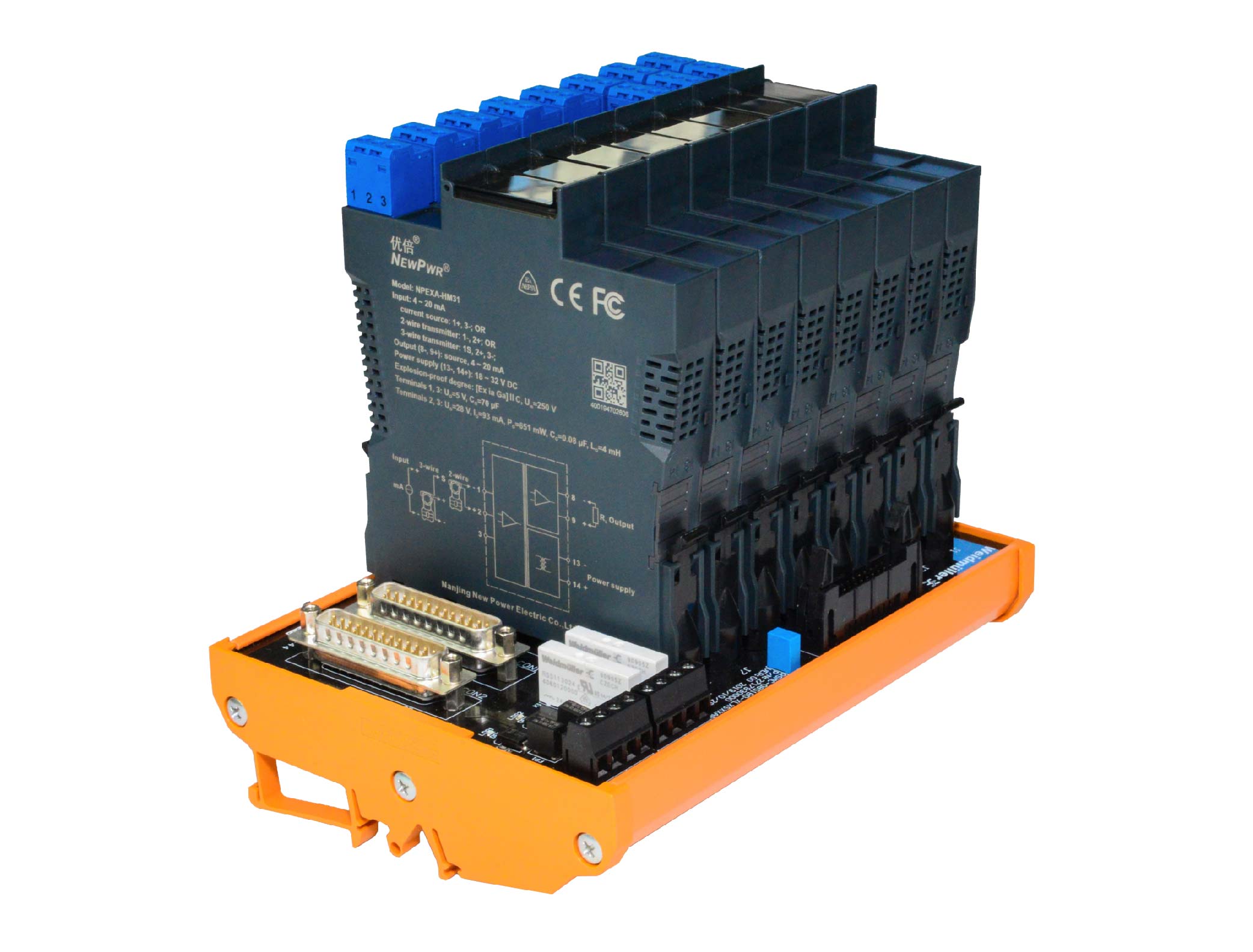

    Backplan installation                                Backplan disposal














    Supply







                          Power supply
                          18 ~ 32 V DC









    Input







                          Input signal
                          K, E, S, B, J, T, R, N, etc.









    Output







                          Output signal
                          Output1: 1:1 mV; Output2: 4 ~ 20mA





                          Load resistance
                          Output1: RL ≥ 10kΩ; Output2: RL ≤ 500Ω









    Transfer characterisics







                          Conversion accuracy-K
                          -200 ℃ ~ +1372 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-E
                          -100 ℃ ~ +1000 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-J
                          -100 ℃ ~ +1200 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-N
                          -200 ℃ ~ +1300 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-S
                          -50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.





                          Conversion accuracy-R
                          -50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.





                          Conversion accuracy-T
                          -20 ℃ ~ +400 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-B
                          +400 ℃ ~ +1820 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.





                          Temperature drift
                          0.01%F.S./℃









    General parameters







                          Compensation accuracy
                          1°C (Temperature compensation range: -20°C ~ +60°C)





                          Response time
                          ≤ 1 s





                          Power dissipation
                          1.5 W









    EMC data







                          Electromagnetic compatibility
                          IEC 61326-3-1





                          Dielectric strength
                          ≥ 2500V AC (intrinsically safe side / non-intrinsically safe side); ≥ 500V AC (Power supply /non-intrinsically safe side)





                          Insulation resistance
                          ≥ 100 MΩ (Input /Output/Power supply)









    Operating conditions







                          Operation temperature
                          -20 ℃ ~ +60 ℃





                          Storage temperature
                          -40 ℃ ~ +80 ℃





                          Suitable location
                          Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6









    State







                          Output states
                          Whatever input fault status (except breakage), the output follows the input within measuring range. And the maximum value would not exceed the 110% of the upper limit of the measuring range (e.g. When the output signal type is 0 ~ 20mA, the minimum output value may be 0mA,  the maximum output value would not exceed 22mA)









    Mechanical specifications







                          Connection method
                          Screw connection





                          Dimension
                          15.8mm (W) × 121.6mm (H) × 104.8mm (D)





                          Mounting type
                          DIN35 mm









    Certified data







                          Product approvals
                          NEPSI, CE, FCC, CCC





                          Ex marking
                          [Ex ia Ga]ⅡC





                          Um
                          250 V





                          Uo
                          7.3 V (Terminals 1, 3)





                          Io
                          27 mA (Terminals 1, 3)





                          Po
                          50 mW (Terminals 1, 3)





                          Co
                          12 μF (Terminals 1, 3)





                          Lo
                          28 mH (Terminals 1, 3)










































              NPEXA-C11





    一入一出


    熱電偶輸入安全柵
