                                        CN

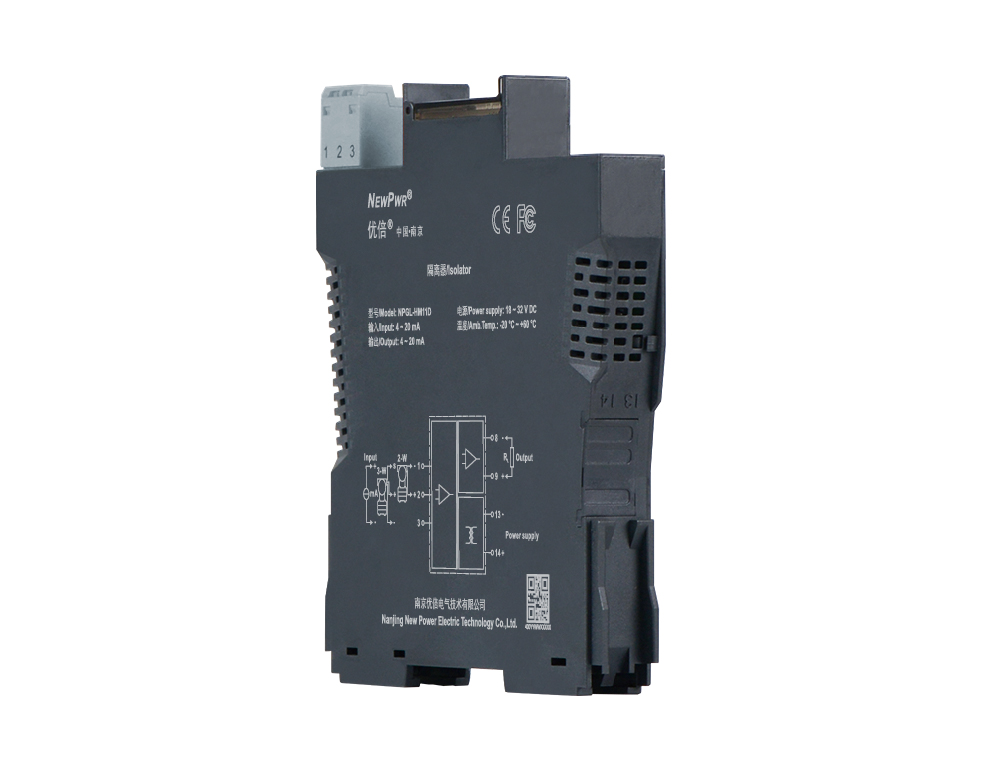

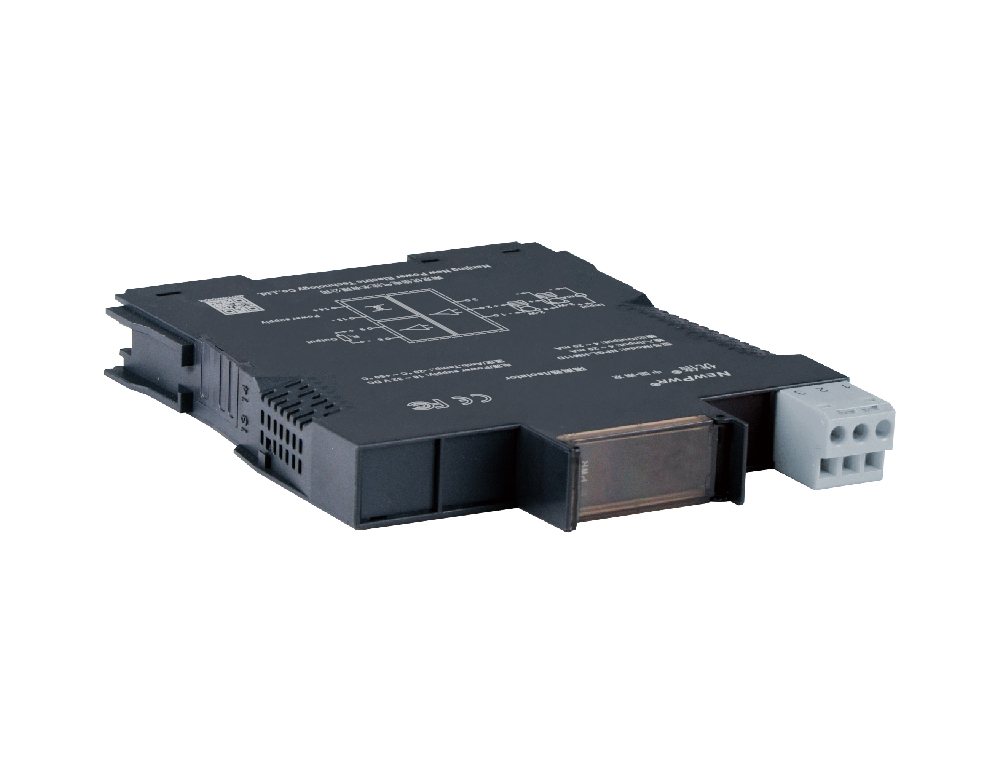

    NPGL-HM11D









                This isolator detects loop current and converts it to 4~20mA signals, and also provides transmitters with power. It allows transmission of HART communication signals. It needs a backplane power supply. The input, output, and power supply are galvanically isolated from each other.








    Input signal












    Output signal












    Channels












    Power Supply Mode












    HART

















                Share


















    NPGL-HM11D












    【Core technology】
    【Installation and disposal】



    Apparatus installation                            Apparatus disposal

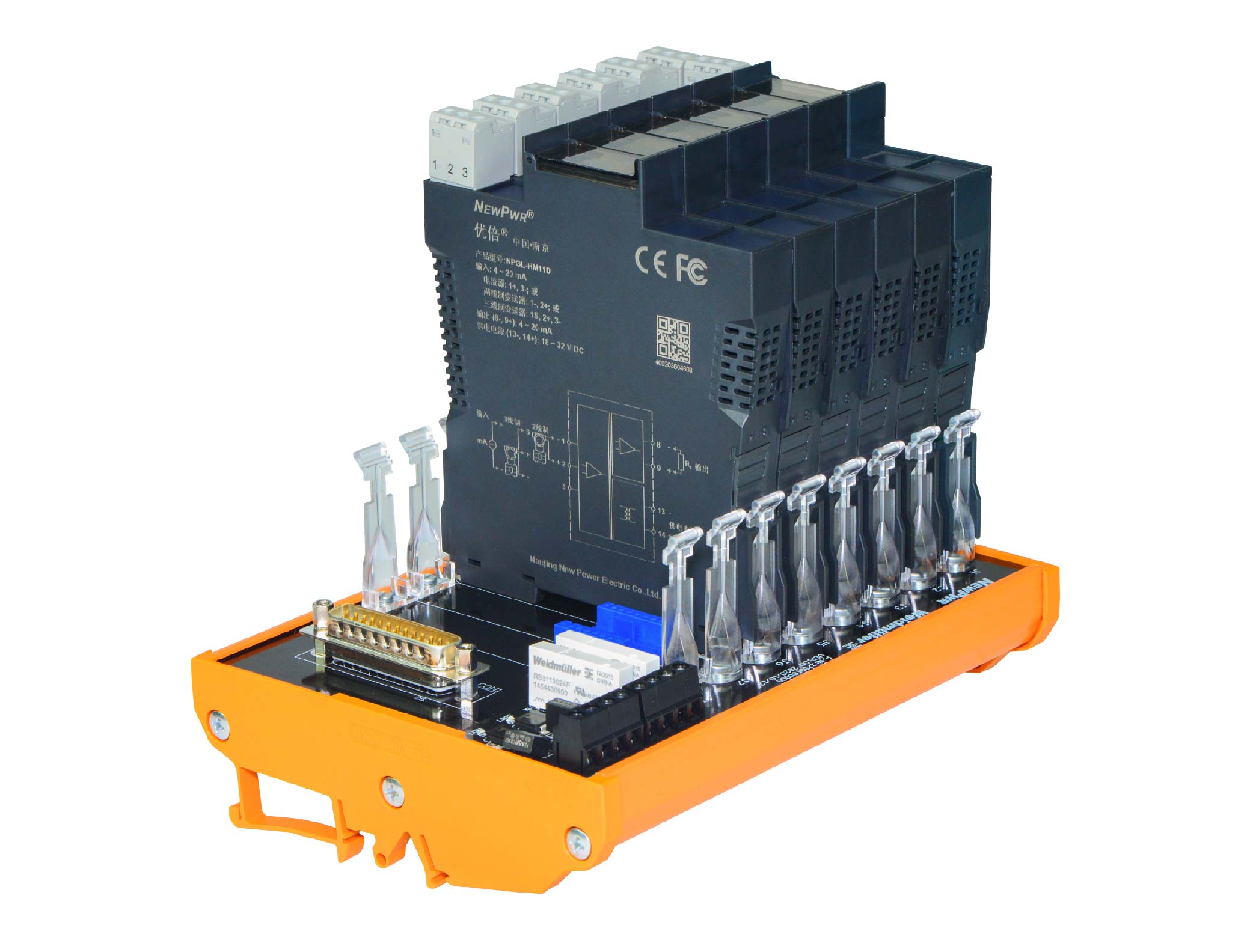

    Backplan installation                                Backplan disposal















    Supply







                          Power supply
                          18 ~ 32 V DC









    Input







                          Input signal
                          4 ~ 20mA, HART





                          Line resistance
                          approx. 50Ω





                          Available voltage
                          open-circuit voltage ≤ 26V; voltage: ≥ 15.5V at 20mA









    Output







                          Output signal
                          4 ~ 20mA, HART





                          Load resistance
                          RL ≤ 450 Ω









    Transfer characterisics







                          Accuracy
                          ± 0.1 %F.S.





                          Temperature drift
                          0.005%F.S./℃









    General parameters







                          Response time
                          ≤ 2 ms





                          Power dissipation
                          1.3 W









    EMC data







                          Electromagnetic compatibility
                          IEC 61326-3-1





                          Dielectric strength
                          ≥ 1500 V AC (Input /Output); ≥ 500 V AC (Power supply /Output)





                          Insulation resistance
                          ≥ 100 MΩ (Input /Output/Power supply)









    Operating conditions







                          Operation temperature
                          -20 ℃ ~ +60 ℃





                          Storage temperature
                          -40 ℃ ~ +80 ℃









    Mechanical specifications







                          Connection method
                          Screw connection





                          Dimension
                          15.8mm (W) × 121.6mm (H) × 104.8mm (D)





                          Mounting type
                          DIN35 mm









    Certified data







                          Product approvals
                          CE, FCC
