                                        CN

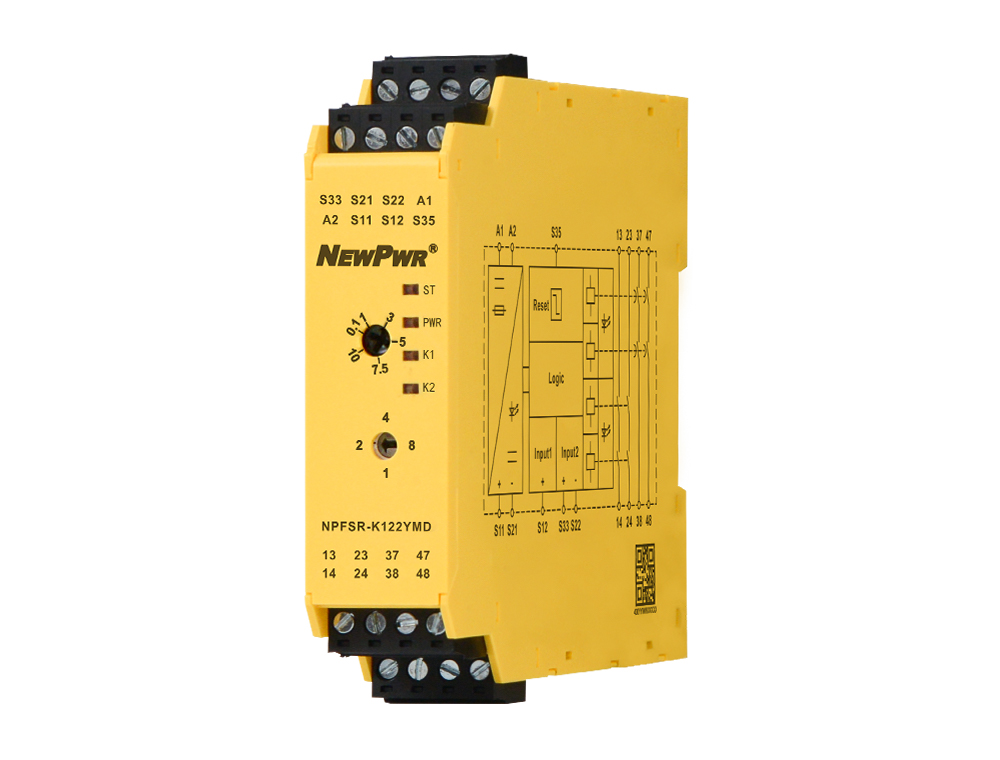

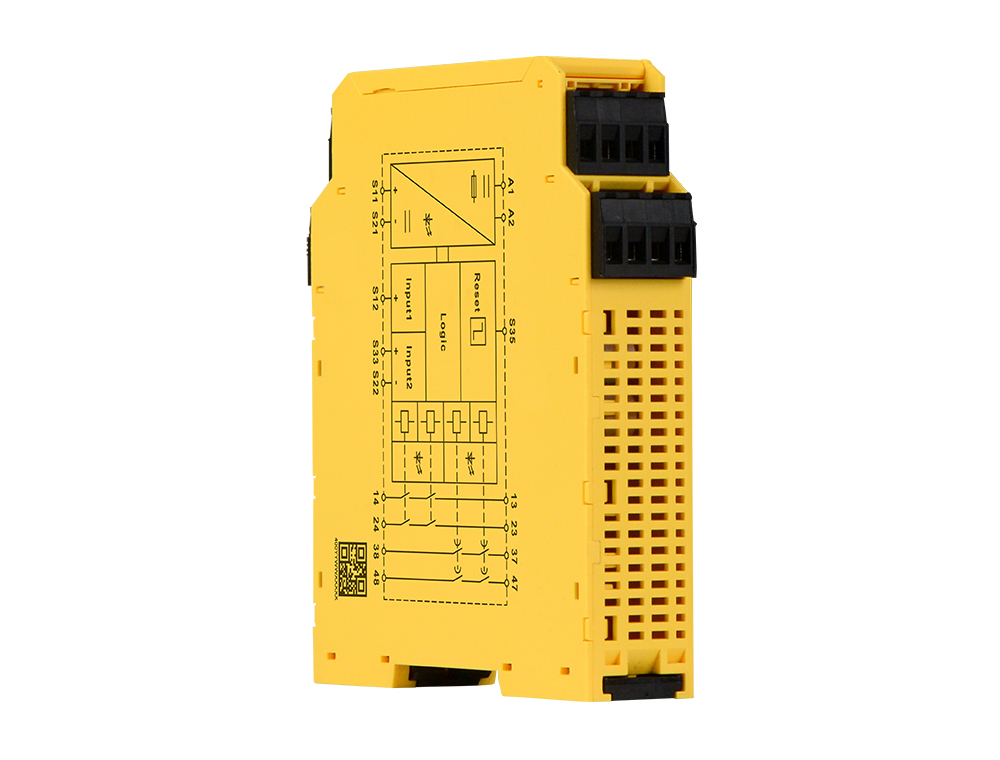

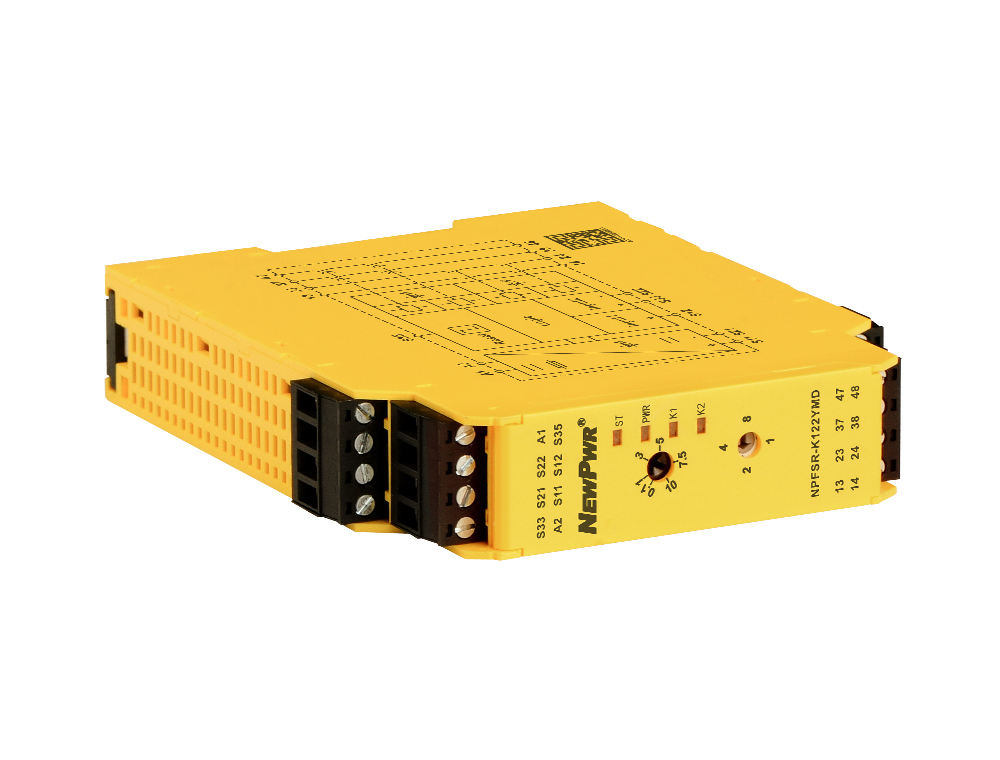

    NPFSR-K122YMD









                The inputs of K series E-STOP, safety gate input safety relays are normally closed contact signals, which are used for emergency braking or the protection of people entering dangerous areas, and widely used in machining and other industries. Main features: 1oo2 architecture. With detection of shorts across contacts. With monitored manual reset function. The safety function remains effective in the case of a component failure. The correct opening and closing of the safety function relays is tested automatically in each on-off cycle.












    Input devices












    Signal type












    Voltage range












    Reset method

















                Share


















    NPFSR-K122YMD












    【Core technology】

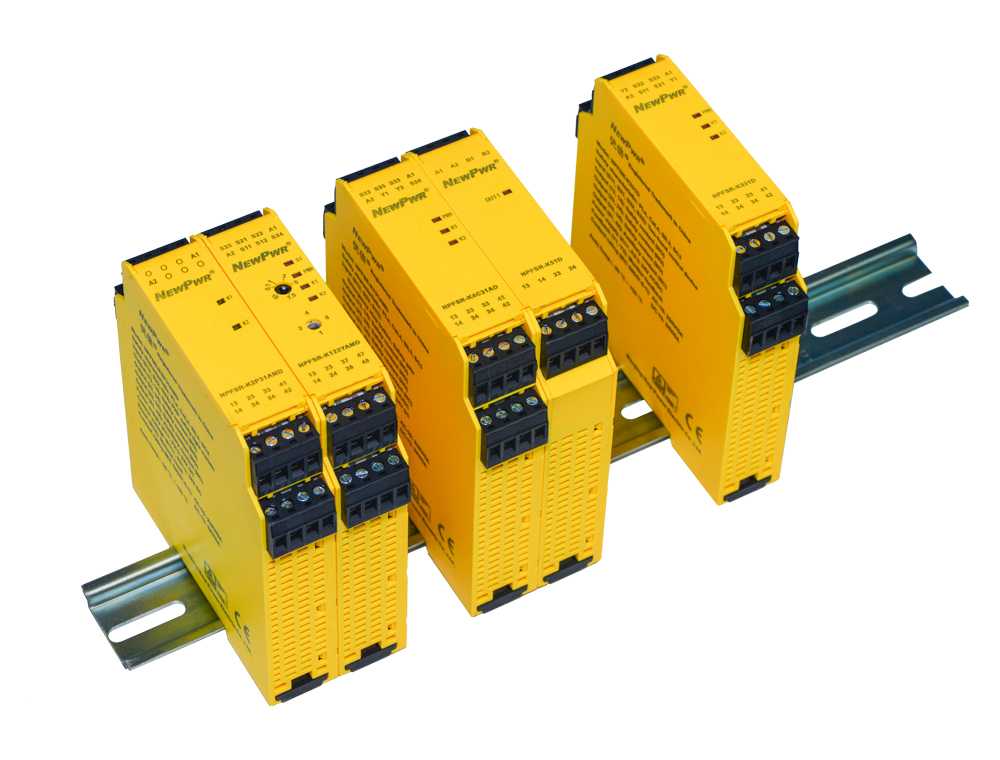

    【Installation and disposal】



    Installation                                               Disposal












    Technical data







                          PFH
                          1.77E-10 1/h, according to IEC 62061(For non-delay contacts: 13/14，23/24);1.85E-10 1/h, according to IEC 62061 (For de-delay contacts: 37/38，47/48)









    Supply







                          Voltage range
                          24V DC





                          Voltage tolerance
                          0.85 ~ 1.1









    Input







                          Current consumption
                          ≤ 50mA/24V DC





                          Cable resistance
                          ≤ 15Ω





                          Input devices
                          E-STOP button, Safety gate









    Output







                          Signal type
                          2 NO, non-delay + 2 NO, d-delay





                          Contact type
                          Forced guided





                          Contact material
                          AgSnO2





                          Contact loading
                          AC-15: 3A/230V, DC-13: 3A/24V





                          Contact fuse protection
                          10A gL/gG(NO)









    General parameters







                          Delay time Tset
                          0.1~80s, default 10s





                          Delay time accuracy
                          ±15%





                          Switch-on
                          ≤ 150ms





                          Release
                          E-stop: ≤ 30ms; Power failure: ≤ 100ms





                          Recovery time
                          E-stop: ≤ 30ms, Power failure: ≤ 100ms





                          Supply short interruption
                          20ms





                          Power dissipation
                          ≤ 3.8W/24V DC









    EMC data







                          EMC
                          According to IEC/EN 60947, IEC 61326-3-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4





                          Rated insulation voltage
                          250V AC





                          Rated impulse voltage
                          6000V(1.2/50us)





                          Dielectric strength
                          1500V AC, 1 min





                          Clearance and creepage
                          According to IEC 60947-1









    Operating conditions







                          Vibration
                          10Hz ~ 55Hz, 0.35mm





                          Overvoltage category
                          III





                          Pollution degree
                          2





                          Protection type
                          IP20





                          Ambient temperature
                          -20 ℃ ~ +60 ℃





                          Storage temperature
                          -40 ℃ ~ +80 ℃









    Mechanical specifications







                          Connection method
                          Screw connection





                          Dimension
                          23 mm(W)×100 mm(H)×115 mm(D)





                          Mounting type
                          DIN35mm

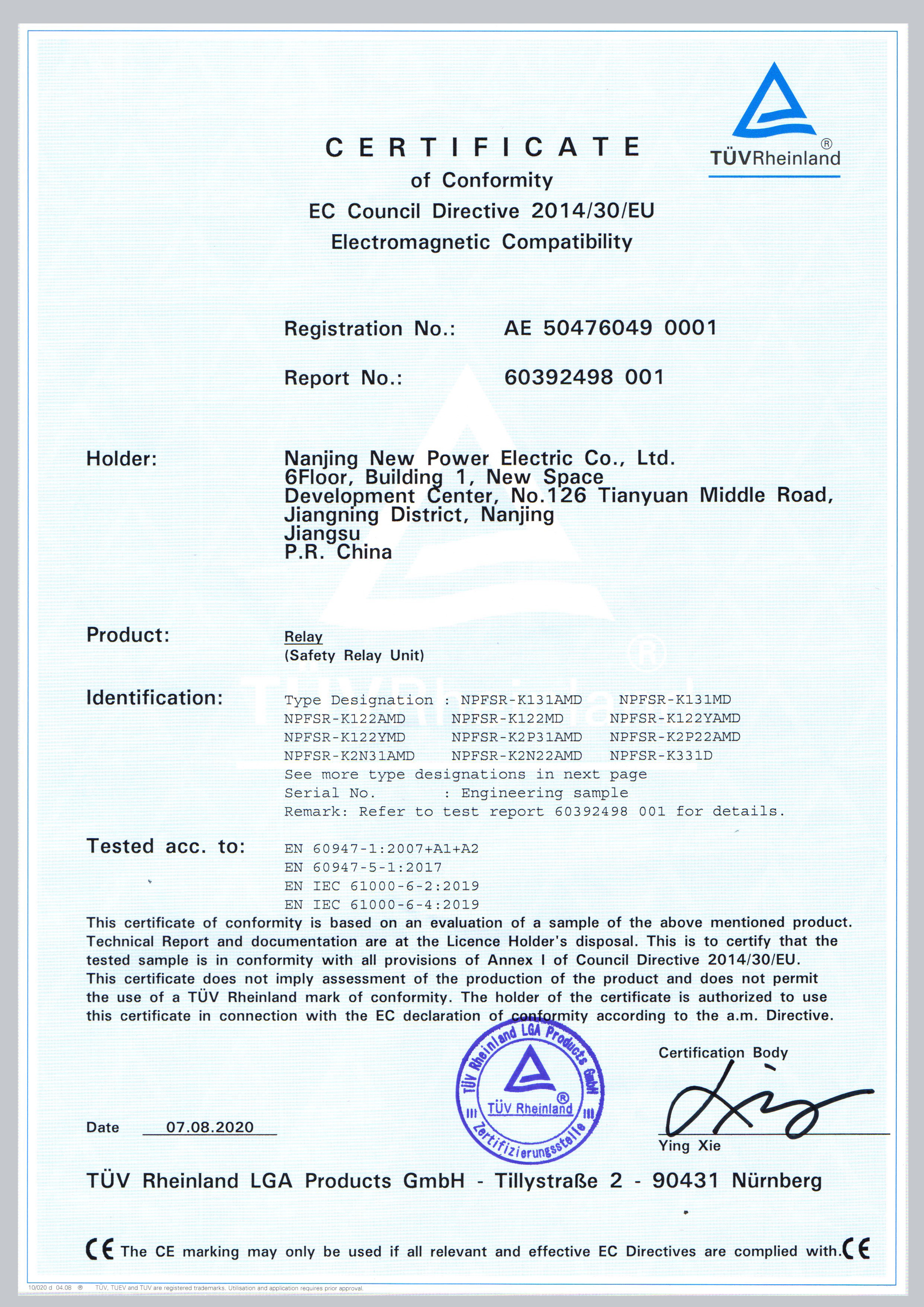

    Certified data







                          Product approvals
                          SIL, CE





                          Performance level
                          PLe, according to ISO 13849 (For non-delay contacts: 13/14，23/24); PLd, according to ISO 13849 (For de-delay contacts: 37/38，47/48)





                          Category
                          Cat.4, according to ISO 13849(For non-delay contacts: 13/14，23/24); Cat.3, according to ISO 13849(For de-delay contacts: 37/38，47/48)





                          PTI (TM)
                          20 years, according to ISO 13849





                          DCavg
                          99%, according to ISO 13849(For non-delay contacts: 13/14，23/24); 90%, according to ISO 13849(For de-delay contacts: 37/38，47/48)





                          MTTFD
                          164 years, according to ISO 13849(For non-delay contacts: 13/14，23/24);161 years, according to ISO 13849(For de-delay contacts: 37/38，47/48)





                          CCF
                          68, according to ISO 13849





                          SIL
                          SIL3, according to IEC 61508





                          SIL CL
                          SIL CL3, according to IEC 62061





                          HFT
                          1, according to IEC 62061





                          SFF
                          ≥ 99%, according to IEC 62061





                          PFDavg/PTI=20 years
                          1.53E-5, according to IEC 62061 (For non-delay contacts: 13/14，23/24);1.59E-5, according to IEC 62061 (For de-delay contacts: 37/38，47/48)





                          Stop Category
                          0, according to IEC 60204 (For non-delay contacts: 13/14，23/24);1, according to 60204(For de-delay contacts: 37/38，47/48)
