                                        CN












































































    NPDL-C00211031

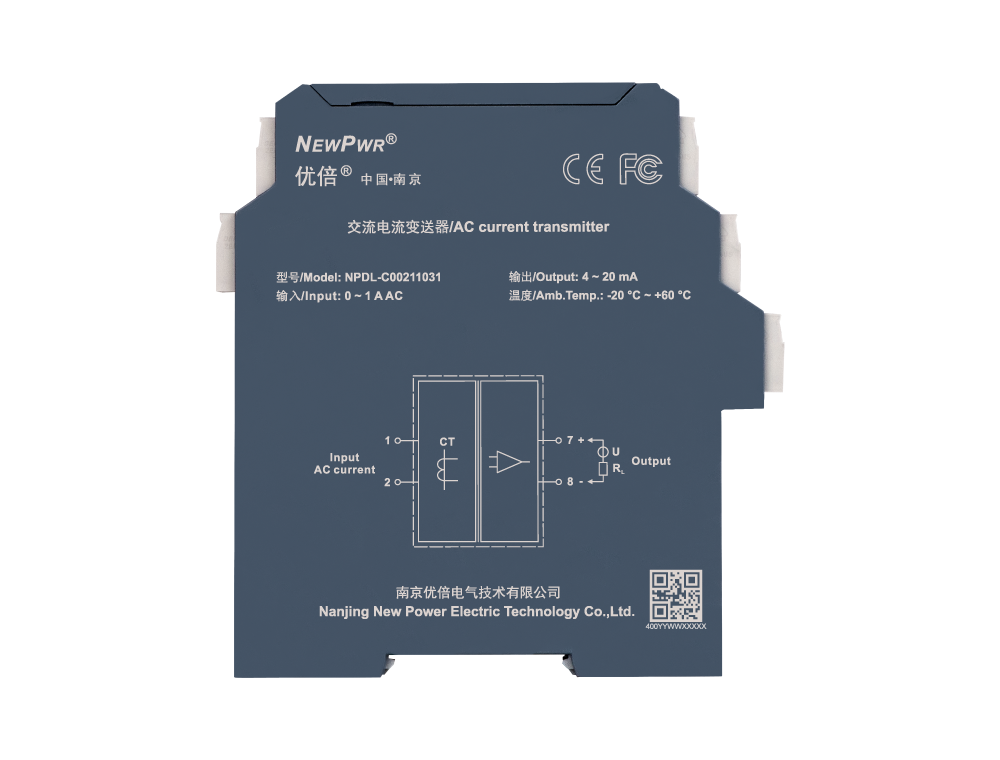

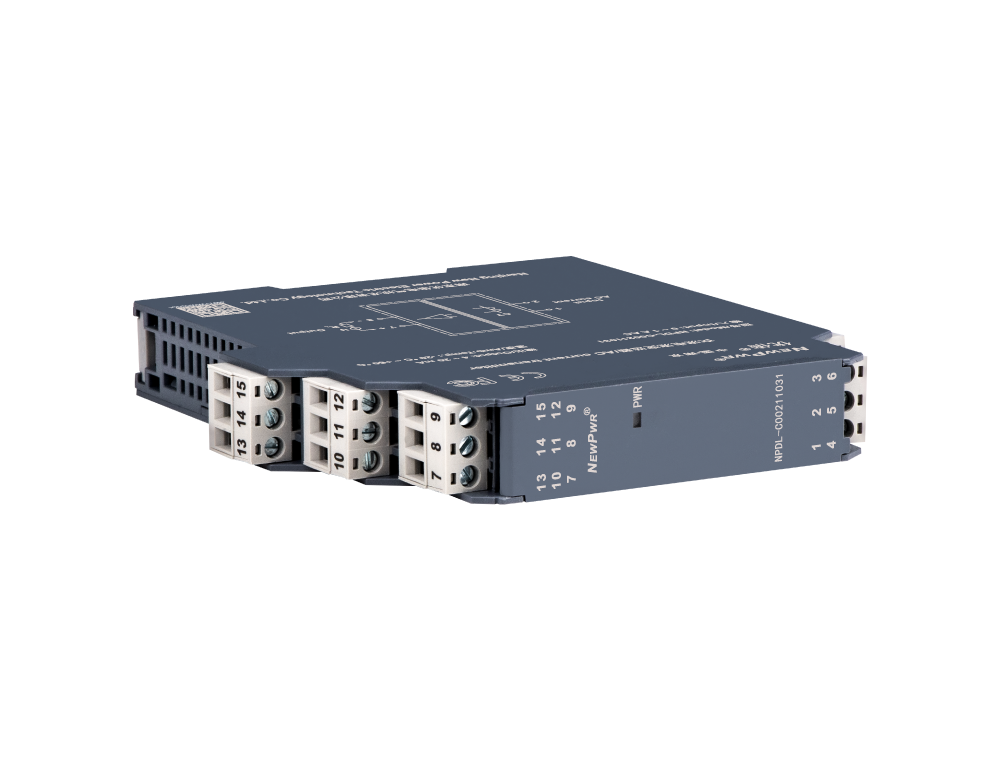

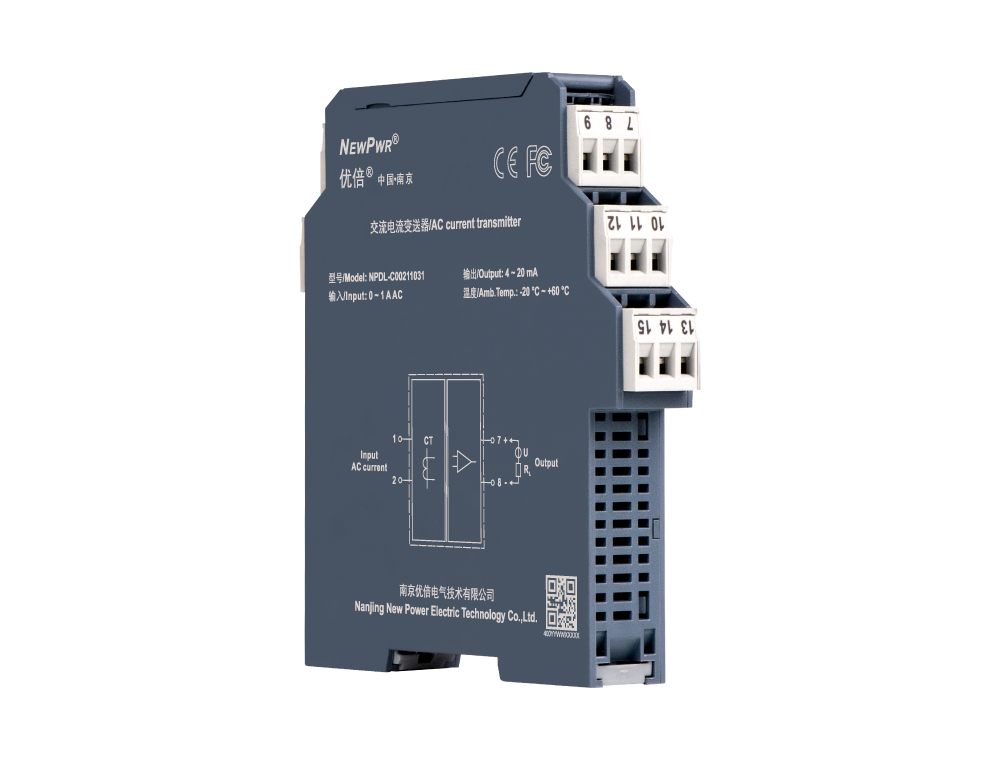

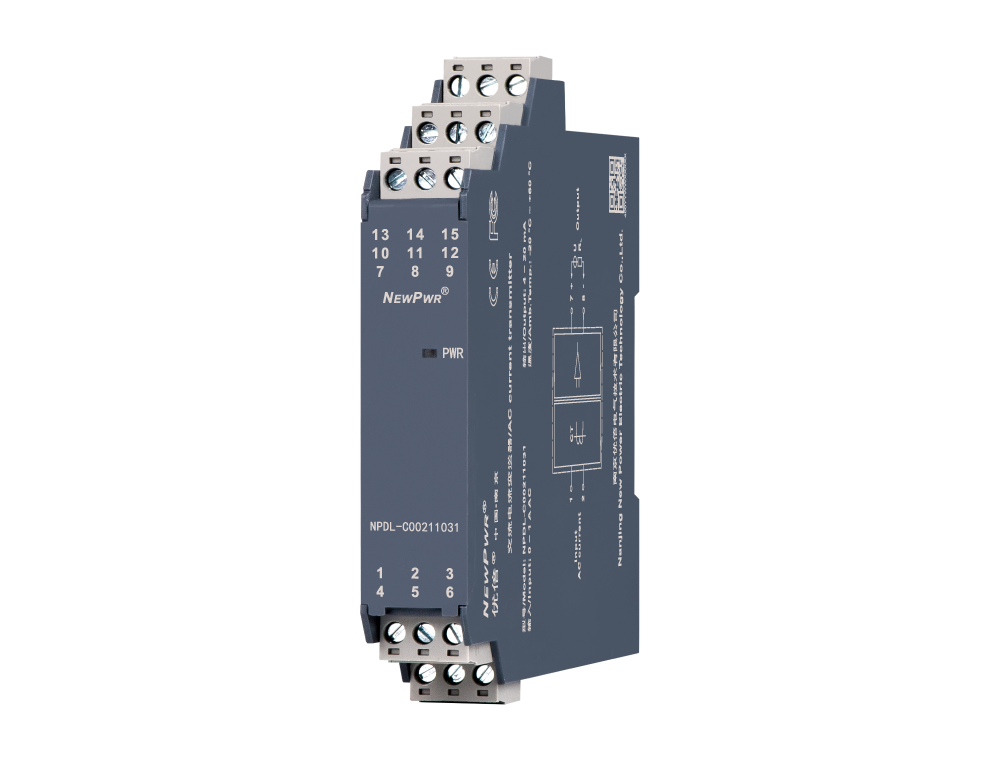

                This AC current transmitter converts the 0 ~ 1 A AC signals to current signals. It has loop powered. The input and output is galvanically isolated from each other.








    Input signal











    Output signal











    Power Supply Mode
















                Share


















    NPDL-C00211031


















    Supply







                          Loop Powered
                          12 ~ 30 V DC









    Input







                          Input signal
                          0 ~ 1 A AC





                          Frequency range
                          40 Hz ~ 400 Hz





                          Overload capacity
                          double input nominal value









    Output







                          Output signal
                          4 ~ 20 mA





                          Load resistance
                          RL < [(U-12)/0.02]Ω; U: Loop power supply









    Transfer characterisics







                          Accuracy
                          0.2 %F.S. ( 0 ~ 120% )





                          Temperature drift
                          50ppm/℃









    General parameters







                          Response time
                          ＜ 330 ms









    EMC data







                          Electromagnetic compatibility
                          IEC 61326-3-1





                          Dielectric strength
                          ≥ 1500V AC (Input /Output)





                          Insulation resistance
                          ≥ 100 MΩ (Input /Output)









    Operating conditions







                          Operation temperature
                          -20℃～+60℃





                          Storage temperature
                          -40℃～+80℃









    Mechanical specifications







                          Connection method
                          Screw connection





                          Dimension
                          17.8mm (W) × 110mm (H) × 117mm (D)





                          Mounting type
                          DIN35 mm









    Certified data







                          Product approvals
                          CE, FCC










































              NPEXA-C11
