                                        CN

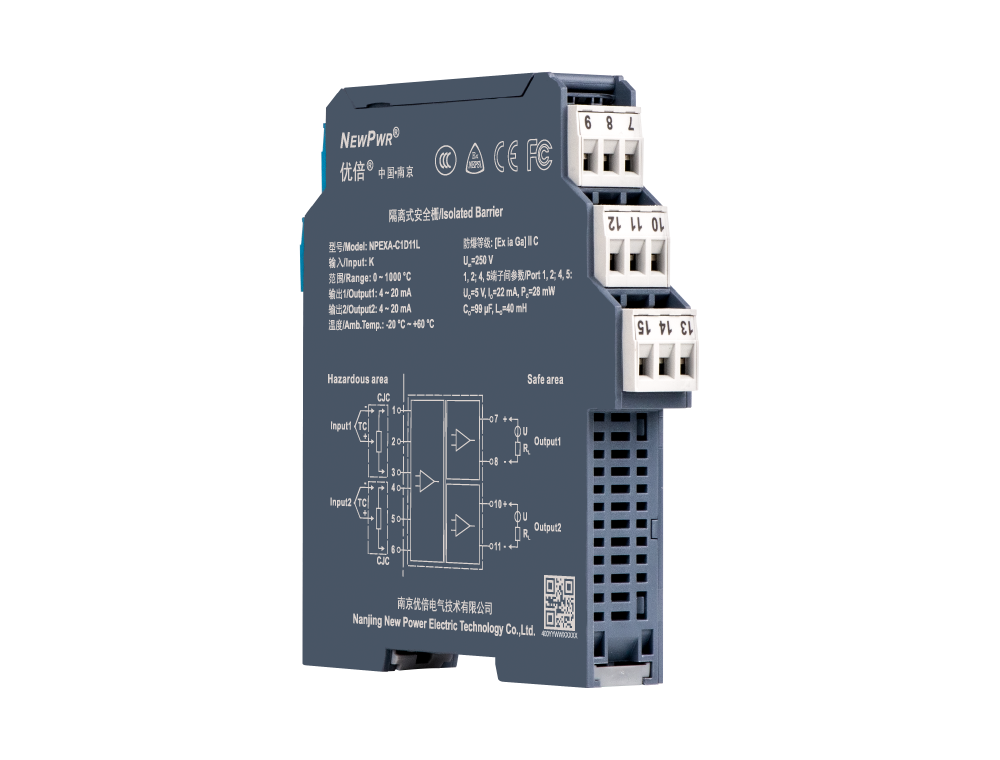

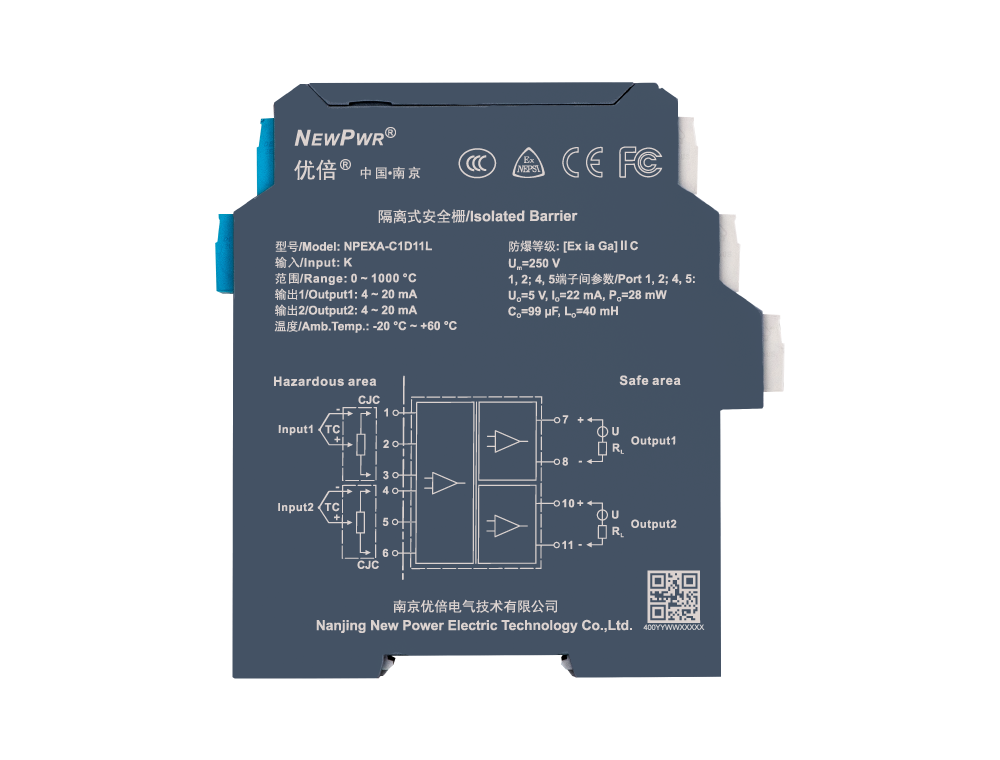

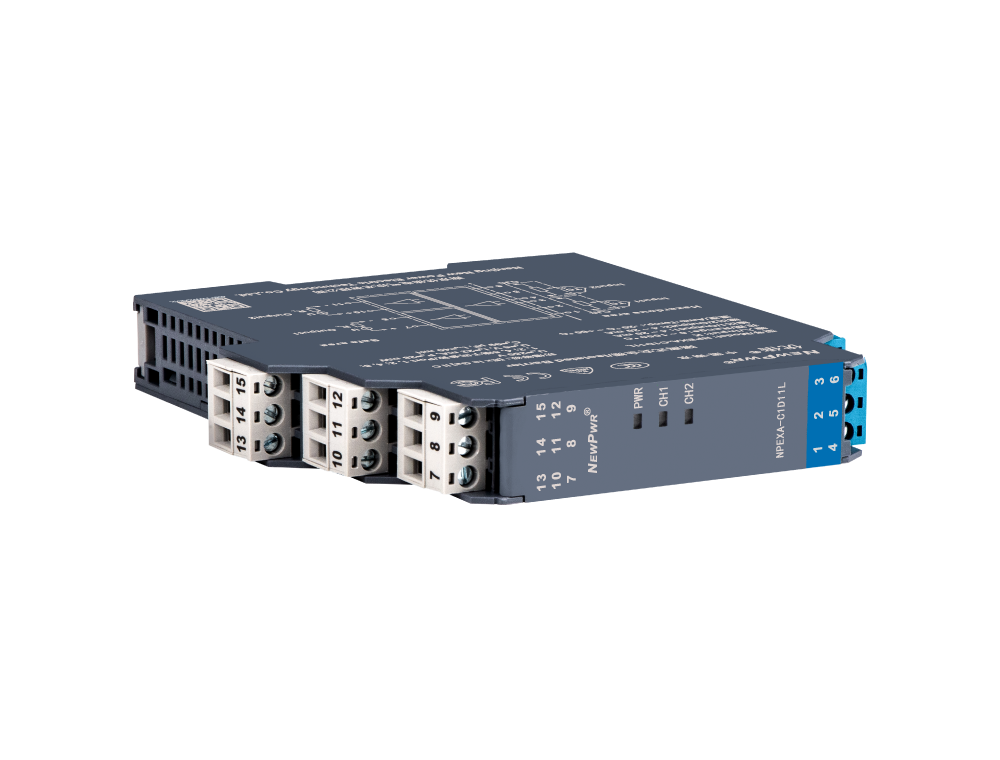

    NPEXA- C1D11L









                Temperature input isolated barrier, it converts the thermocouple signals from a hazardous area into 4~20mA signals to a safe area by isolation. It has loop powered. The input and output is galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.










    Input signal












    Output signal












    Channels












    Power Supply Mode

















                Share


















    NPEXA- C1D11L












    【Core technology】
    【Installation and disposal】



    Installation                                               Disposal
















    Supply







                          Loop Powered
                          12 ~ 30 V DC









    Input







                          Input signal
                          K, E, S, B, J, T, R, N, etc.









    Output







                          Output signal
                          4 ~ 20 mA





                          Load resistance
                          RL < [(U-12)/0.022]Ω; U is loop powered voltage









    Transfer characterisics







                          Conversion accuracy-K
                          -200 ℃ ~ +1372 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-E
                          -100 ℃ ~ +1000 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-J
                          -100 ℃ ~ +1200 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-N
                          -200 ℃ ~ +1300 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-S
                          -50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.





                          Conversion accuracy-R
                          -50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.





                          Conversion accuracy-T
                          -20 ℃ ~ +400 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-B
                          +400 ℃ ~ +1820 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.





                          Temperature drift
                          0.015 %F.S./℃









    General parameters







                          Compensation accuracy
                          1°C (Temperature compensation range: -20°C ~ +60°C)





                          Response time
                          1 s









    EMC data







                          Electromagnetic compatibility
                          IEC 61326-3-1





                          Dielectric strength
                          ≥ 2500V AC (intrinsically safe side / non-intrinsically safe side)





                          Insulation resistance
                          ≥ 100 MΩ (Input /Output)









    Operating conditions







                          Operation temperature
                          -20 ℃ ~ +60 ℃





                          Storage temperature
                          -40 ℃ ~ +80 ℃





                          Suitable location
                          Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, ⅢC, T4 ~ T6









    State







                          Output states
                          Whatever input fault status (except breakage, the output is 3.5mA), the output follows the input within measuring range. And the maximum value would not exceed 22mA ,the maximum output value would not less than 3.5mA









    Mechanical specifications







                          Connection method
                          Screw connection





                          Dimension
                          17.8mm (W) × 110mm (H) × 117mm (D)





                          Mounting type
                          DIN35 mm









    Certified data







                          Product approvals
                          NEPSI, CE, FCC, CCC





                          Ex marking
                          [Ex ia Ga]ⅡC, [Ex ia Da] ⅢC





                          Um
                          250 V





                          Uo
                          5 V (Terminals 1, 2; 4, 5)





                          Io
                          22 mA (Terminals 1, 2; 4, 5)





                          Po
                          28 mW (Terminals 1, 2; 4, 5)





                          Co (ⅡC)
                          99 μF (Terminals 1, 2; 4, 5)





                          Lo (ⅡC)
                          40 mH (Terminals 1, 2; 4, 5)










































              NPEXA-C11
