                                        CN

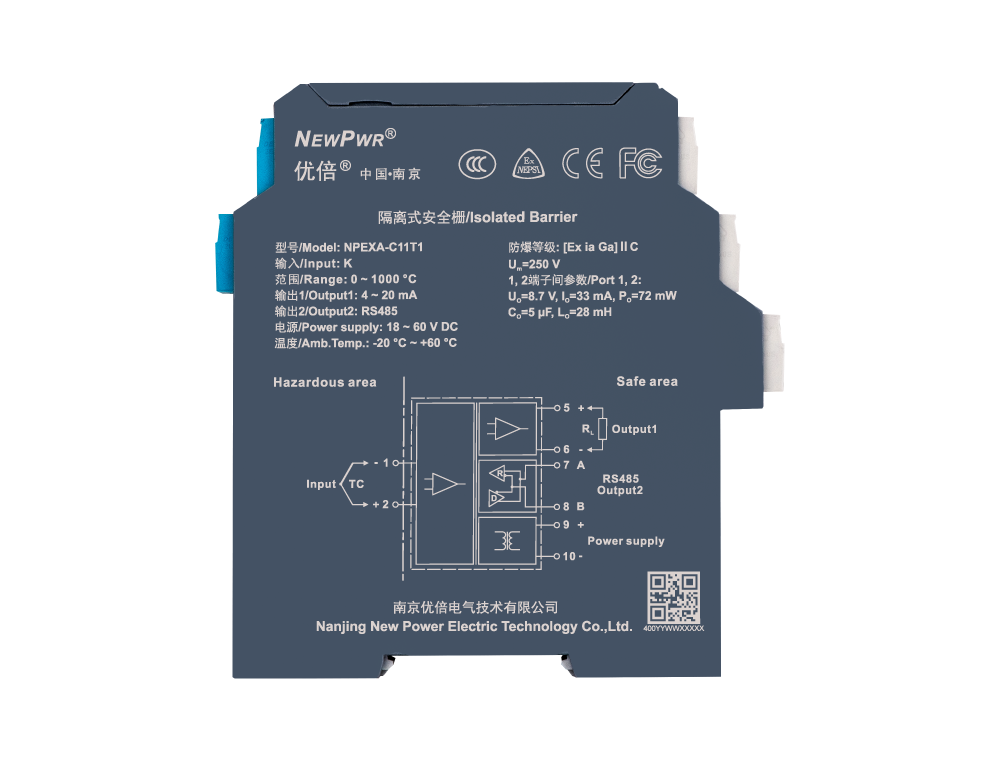

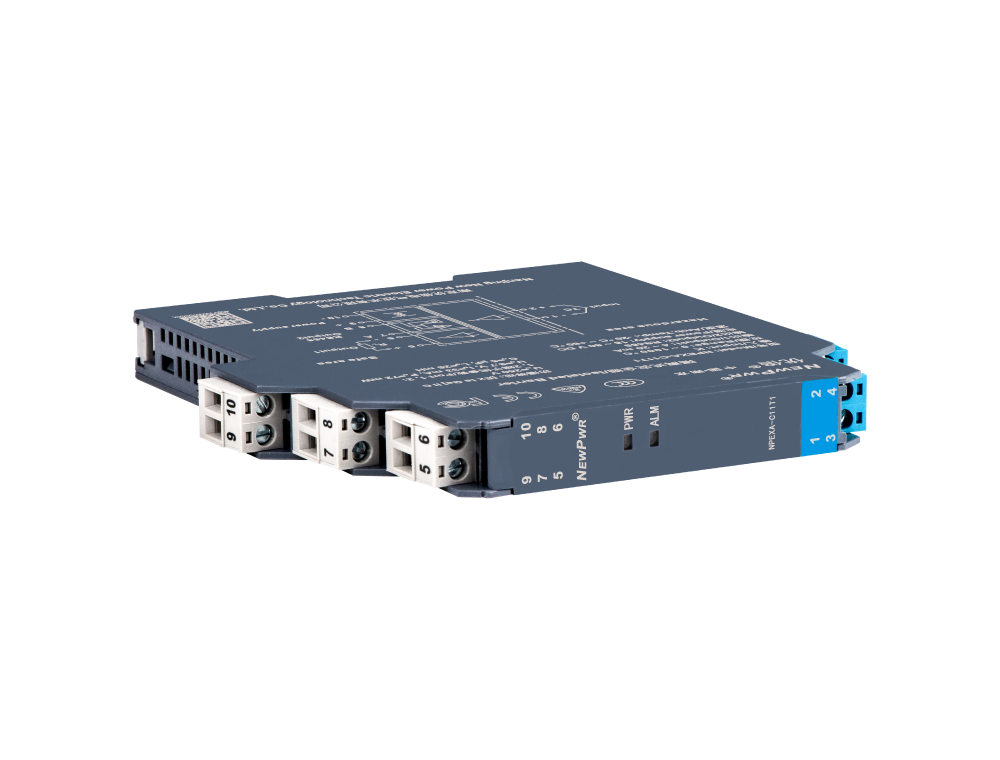

    NPEXA-C11T1









                Temperature input isolated barrier, it converts the thermocouple signals from a hazardous area into 4~20mA and RS485 signals to a safe area by isolation. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.










    Input signal












    Output signal













    Channels












    Power Supply Mode

















                Share


















    NPEXA-C11T1












    【Core technology】
    【Installation and disposal】



    Installation                                               Disposal
















    Supply







                          Power supply
                          18 ~ 60 V DC









    Input







                          Input signal
                          K, E, S, B, J, T, R, N, etc.









    Output







                          Output signal
                          Output1: 4 ~ 20mA; Output2: RS485





                          Load resistance
                          RL ≤ 550 Ω





                          Communication parameters
                          MODBUS-RTU, distance ≤ 1000m





                          Baud rate
                          ≤ 19.2 kbps









    Transfer characterisics







                          Conversion accuracy-E
                          -100 ℃ ~ +1000 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-K
                          -200 ℃ ~ +1372 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-J
                          -100 ℃ ~ +1200 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-N
                          -200 ℃ ~ +1300 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-S
                          -50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.





                          Conversion accuracy-R
                          -50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.





                          Conversion accuracy-T
                          -20 ℃ ~ +400 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-B
                          +400 ℃ ~ +1820 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.





                          Temperature drift
                          40 ppm/℃









    General parameters







                          Compensation accuracy
                          1°C (Temperature compensation range: -20°C ~ +60°C)





                          Response time
                          ≤ 500 ms





                          Power dissipation
                          0.9 W









    EMC data







                          Electromagnetic compatibility
                          IEC 61326-3-1





                          Dielectric strength
                          ≥ 3000V AC (intrinsically safe side / non-intrinsically safe side) ≥ 1500V AC (Power supply /non-intrinsically safe side)





                          Insulation resistance
                          ≥ 100 MΩ (Input /Output/Power supply)









    Operating conditions







                          Operation temperature
                          -20 ℃ ~ +60 ℃





                          Storage temperature
                          -40 ℃ ~ +80 ℃





                          Suitable location
                          Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, ⅢC, T4 ~ T6









    State







                          Output states
                          Whatever input fault status (except breakage), the output follows the input within measuring range. And the maximum value would not exceed the 110% of the upper limit of the measuring range.









    Mechanical specifications







                          Connection method
                          Screw connection





                          Dimension
                          12.8mm (W) × 110mm (H) × 117mm (D)





                          Mounting type
                          DIN35 mm









    Certified data







                          Product approvals
                          NEPSI, CE, FCC, CCC





                          Ex marking
                          [Ex ia Ga]ⅡC, [Ex ia Da] ⅢC





                          Um
                          250 V





                          Uo
                          8.7 V (Terminals 1, 2)





                          Io
                          33 mA (Terminals 1, 2)





                          Po
                          72 mW (Terminals 1, 2)





                          Co (ⅡC)
                          5 μF (Terminals 1, 2)





                          Lo (ⅡC)
                          28 mH (Terminals 1, 2)























                      NPPB-DIN Bus rail power supply

     35mm standard rail












                      NPPB-BS210 I/O terminal base

    Connect the rail BUS base, external power is introduced through the terminal block of the base. If a redundant power module is selected, this terminal can be left unselected.












                      NPPB-BSC028 Dust cover

    Protect the exposed bus and split the combination as needed.












                      NPPB-SS5 Limiter

    For fixed position, standard 2 sets












                      NPPB-TS35B Fixed piece

    Material: metal iron, used for rail load-bearing reinforcement, standard 2 pieces








































              NPEXA-C11





    一入一出


    熱電偶輸入安全柵
