                                        CN

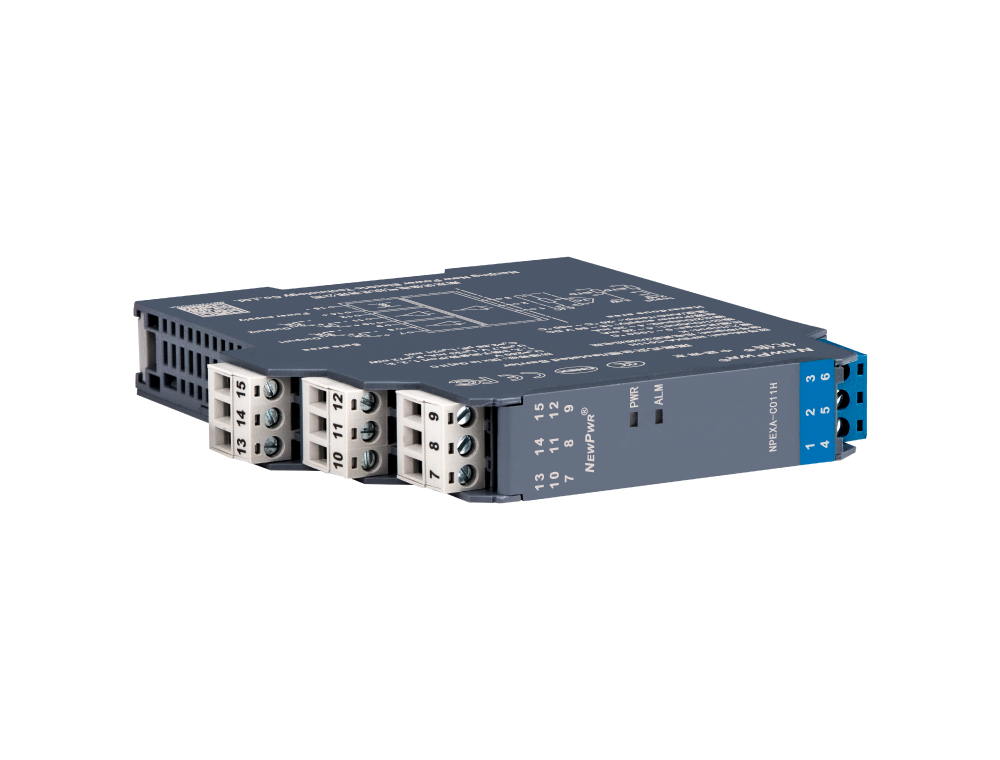

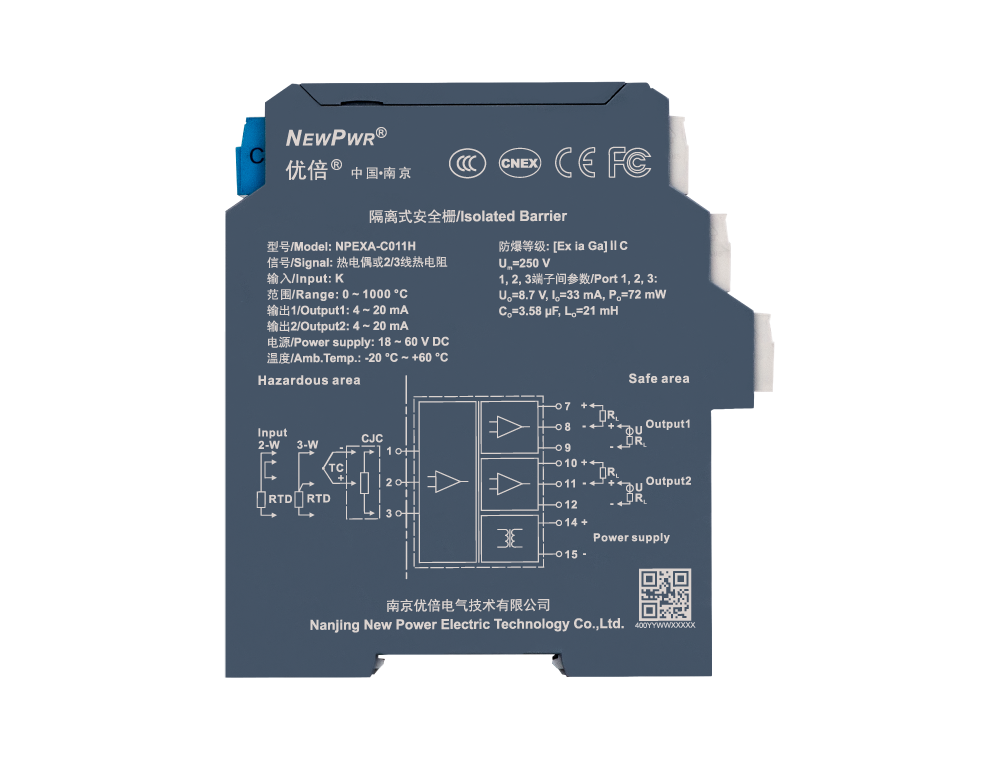

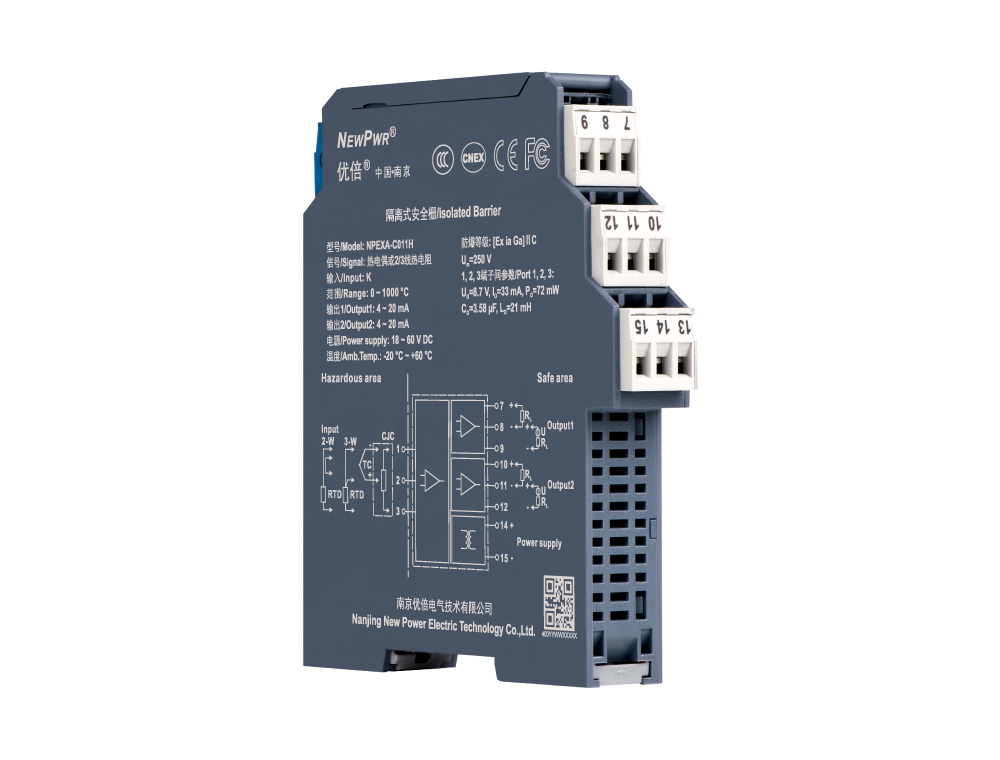

    NPEXA-C011H









                Temperature input isolated barrier, it converts the thermocouple/thermal resistance signals from a hazardous area into 4~20mA signals to a safe area by isolation. It has external cold junction compensation terminals. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other. The self-test function is also available on this device. Calibrate the apparatus or modify parameters by using a handheld programmer.nt power supply.










    Input signal












    Output signal












    Channels












    Power Supply Mode

















                Share


















    NPEXA-C011H












    【Core technology】
    【Installation and disposal】



    Installation                                               Disposal
















    Supply







                          Power supply
                          18 ~ 60 V DC









    Input







                          Input signal
                          K, E, S, B, J, T, R, N, etc. Pt100, Cu100, Cu50, BA1, BA2, etc.





                          Line resistance
                          ≤ 20 Ω per line (RTD)









    Output







                          Output signal
                          4 ~ 20 mA





                          Load resistance
                          RL ≤ 550 Ω









    Transfer characterisics







                          Conversion accuracy-K
                          -200 ℃ ~ +1372 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-E
                          -100 ℃ ~ +1000 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-J
                          -100 ℃ ~ +1200 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-N
                          -200 ℃ ~ +1300 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-S
                          -50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.





                          Conversion accuracy-R
                          -50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.





                          Conversion accuracy-T
                          -20 ℃ ~ +400 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.





                          Conversion accuracy-B
                          +400 ℃ ~ +1820 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.





                          Conversion accuracy-Pt100
                          -200 ℃ ~ +850 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.





                          Conversion accuracy-Cu50
                          -50 ℃ ~ +150 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.





                          Conversion accuracy-Cu100
                          -50 ℃ ~ +150 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.





                          Temperature drift
                          30 ppm/℃









    General parameters







                          Compensation accuracy
                          1°C (Temperature compensation range: -20°C ~ +60°C)





                          Response time
                          ≤ 500 ms





                          Power dissipation
                          1.2 W









    EMC data







                          Electromagnetic compatibility
                          IEC 61326-3-1





                          Insulation resistance
                          ≥ 3000V AC (intrinsically safe side / non-intrinsically safe side) ; ≥ 1500V AC (Power supply /non-intrinsically safe side)





                          Insulation resistance
                          ≥ 100 MΩ (Input /Output/Power supply)









    Operating conditions







                          Operation temperature
                          -20 ℃ ~ +60 ℃





                          Storage temperature
                          -40 ℃ ~ +80 ℃





                          Suitable location
                          Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6









    State







                          Output states
                          Whatever input fault status (except breakage), the output follows the input within measuring range. And the maximum value would not exceed the 110% of the upper limit of the measuring range.









    Mechanical specifications







                          Connection method
                          Screw connection





                          Dimension
                          17.8mm (W) × 110mm (H) × 117mm (D)









    Certified data







                          Product approvals
                          CNEX,CE, FCC, CCC





                          Ex marking
                          [Ex ia Ga]ⅡC





                          Um
                          250 V





                          Uo
                          8.7 V (Terminals 1, 2, 3)





                          Io
                          33 mA (Terminals 1, 2, 3)





                          Po
                          72 mW (Terminals 1, 2, 3)





                          Co
                          3.58 μF (Terminals 1, 2, 3)





                          Lo
                          21 mH (Terminals 1, 2, 3)























                      NPPB-DIN Bus rail power supply

     35mm standard rail












                      NPPB-BS210 I/O terminal base

    Connect the rail BUS base, external power is introduced through the terminal block of the base. If a redundant power module is selected, this terminal can be left unselected.












                      NPPB-BSC028 Dust cover

    Protect the exposed bus and split the combination as needed.












                      NPPB-SS5 Limiter

    For fixed position, standard 2 sets












                      NPPB-TS35B Fixed piece

    Material: metal iron, used for rail load-bearing reinforcement, standard 2 pieces








































              NPEXA-C11





    一入一出


    熱電偶輸入安全柵
