                                        CN

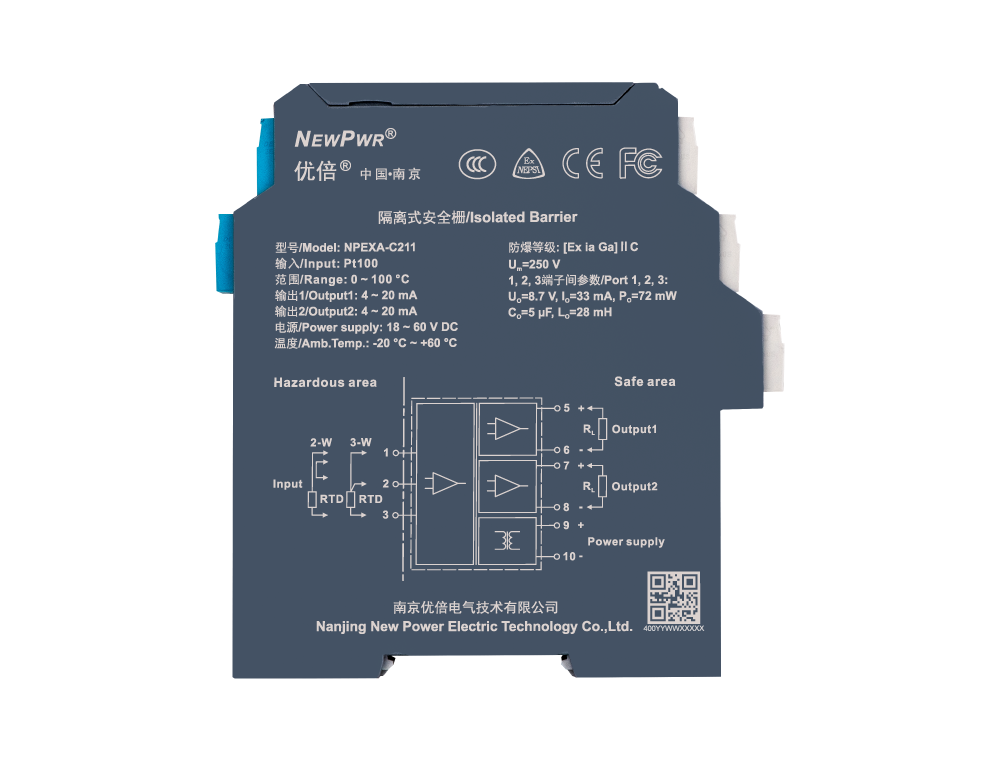

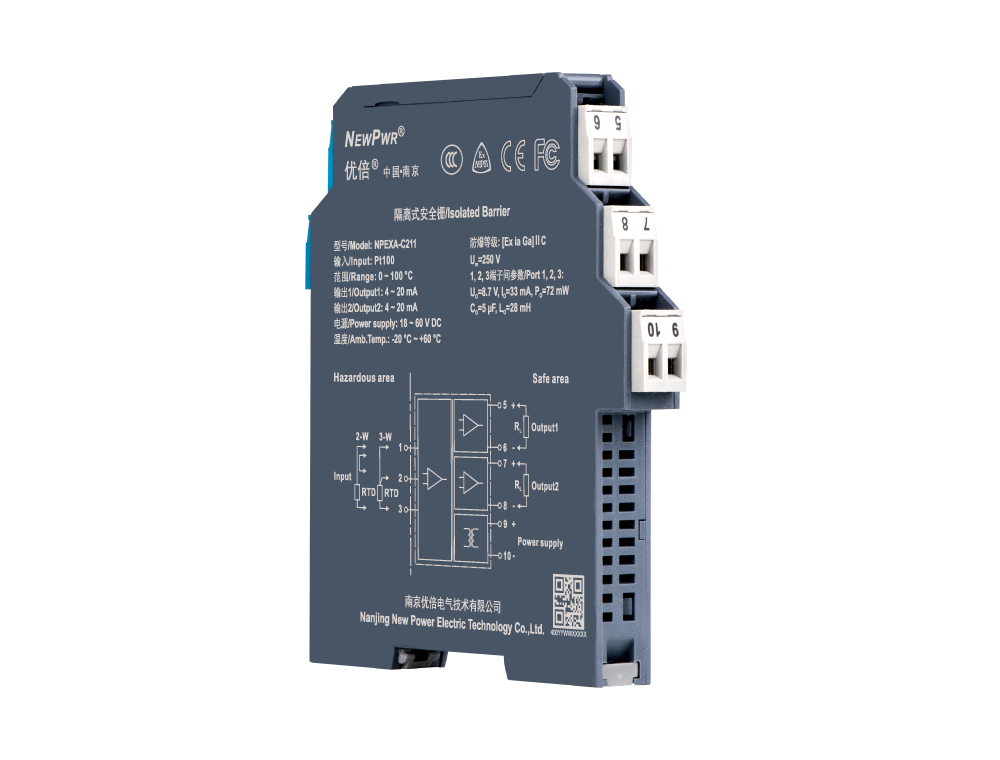

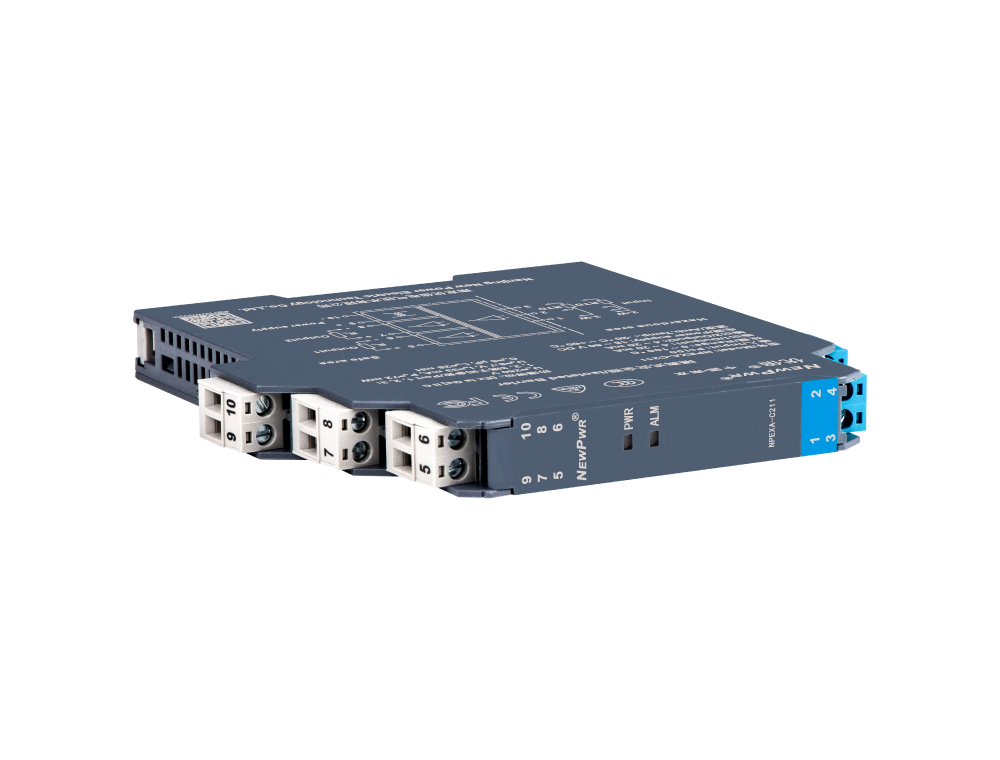

    NPEXA-C211









                Temperature input isolated barrier, it converts the thermal resistance signals from a hazardous area into 4~20mA signals to a safe area by isolation. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other. The self-test function is also available on this device. Calibrate the apparatus or modify parameters by using a handheld programmer.










    Input signal












    Output signal












    Channels












    Power Supply Mode

















                Share


















    NPEXA-C211












    【Core technology】
    【Installation and disposal】



    Installation                                               Disposal
















    Supply







                          Power supply
                          18 ~ 60 V DC









    Input







                          Input signal
                          Pt100, Cu100, Cu50, BA1, BA2, etc.





                          Line resistance
                          ≤ 20 Ω per line









    Output







                          Output signal
                          4 ~ 20 mA





                          Load resistance
                          RL ≤ 550 Ω









    Transfer characterisics







                          Conversion accuracy-Pt100
                          -200 ℃ ~ +850 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.





                          Conversion accuracy-Cu50
                          -50 ℃ ~ +150 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.





                          Conversion accuracy-Cu100
                          -50 ℃ ~ +150 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.





                          Temperature drift
                          30 ppm/℃









    General parameters







                          Response time
                          ≤ 500 ms





                          Power dissipation
                          1.2 W









    EMC data







                          Electromagnetic compatibility
                          IEC 61326-3-1





                          Electromagnetic compatibility
                          ≥ 3000V AC (intrinsically safe side / non-intrinsically safe side); ≥ 1500V AC (Power supply /non-intrinsically safe side)





                          Insulation resistance
                          ≥ 100 MΩ (Input /Output/Power supply)









    Operating conditions







                          Operation temperature
                          -20 ℃ ~ +60 ℃





                          Storage temperature
                          -40 ℃ ~ +80 ℃





                          Suitable location
                          Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, ⅢC, T4 ~ T6









    State







                          Output states
                          Whatever input fault status (except breakage), the output follows the input within measuring range. And the maximum value would not exceed the 110% of the upper limit of the measuring range.









    Mechanical specifications







                          Connection method
                          Screw connection





                          Dimension
                          12.8mm (W) × 110mm (H) × 117mm (D)





                          Mounting type
                          DIN35 mm









    Certified data







                          Product approvals
                          NEPSI, CE, FCC, CCS, CCC





                          Ex marking
                          [Ex ia Ga]ⅡC, [Ex ia Da] ⅢC





                          Um
                          250 V





                          Uo
                          8.7 V (Terminals 1, 2, 3)





                          Io
                          33 mA (Terminals 1, 2, 3)





                          Po
                          72 mW (Terminals 1, 2, 3)





                          Co (ⅡC)
                          5 μF (Terminals 1, 2, 3)





                          Lo (ⅡC)
                          28 mH (Terminals 1, 2, 3)























                      NPPB-DIN Bus rail power supply

     35mm standard rail












                      NPPB-BS210 I/O terminal base

    Connect the rail BUS base, external power is introduced through the terminal block of the base. If a redundant power module is selected, this terminal can be left unselected.












                      NPPB-BSC028 Dust cover

    Protect the exposed bus and split the combination as needed.












                      NPPB-SS5 Limiter

    For fixed position, standard 2 sets












                      NPPB-TS35B Fixed piece

    Material: metal iron, used for rail load-bearing reinforcement, standard 2 pieces
