                                        CN

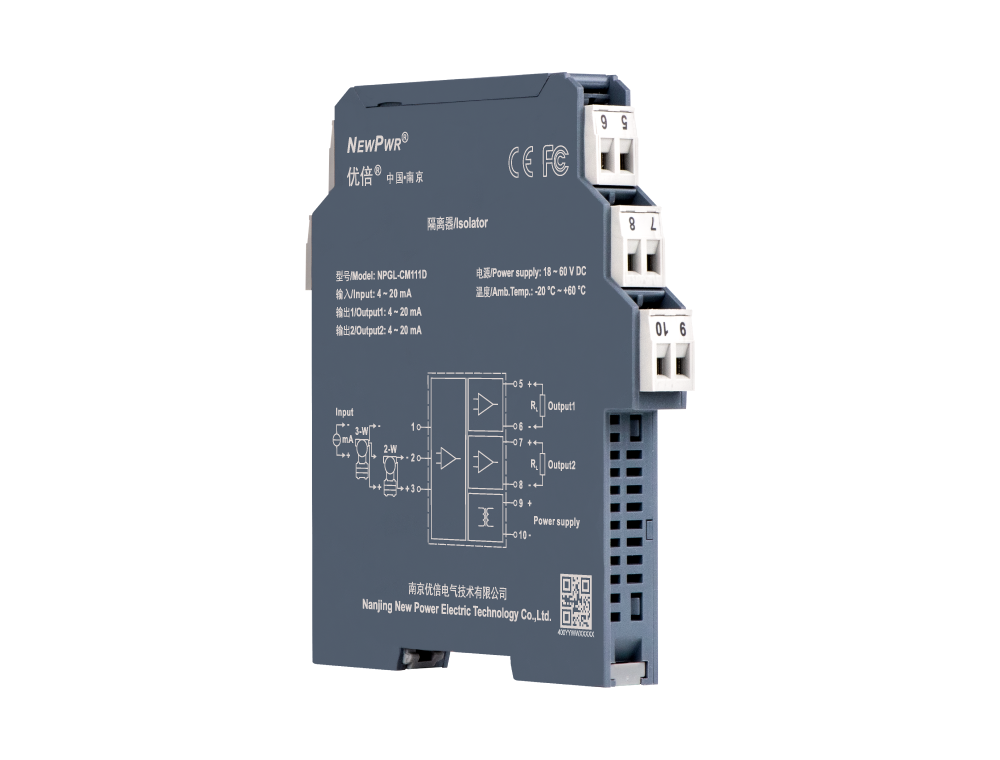

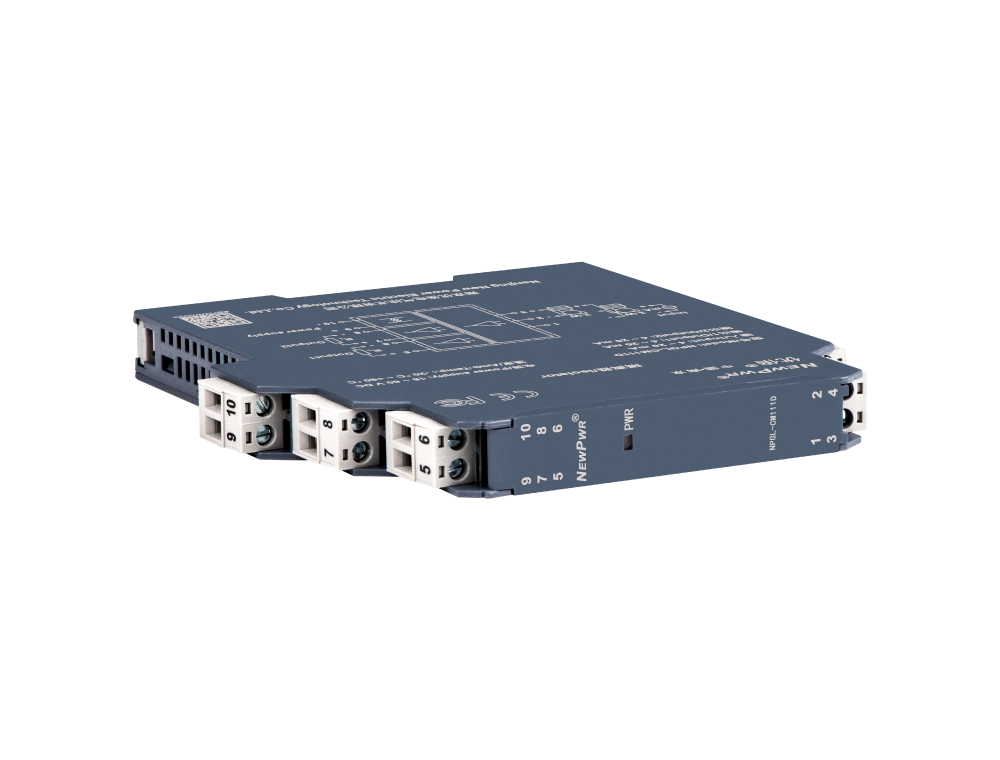

    NPGL-CM111D









                This isolator detects loop current and converts it to 4~20mA signals, and also provides transmitters with power. It allows transmission of HART communication signals. The input, output, and power supply are galvanically isolated from each other.








    Input signal












    Output signal












    Channels












    Power Supply Mode












    HART

















                Share


















    NPGL-CM111D












    【Core technology】

    【Installation and disposal】



    Installation                                               Disposal














    Supply







                          Power supply
                          18 ~ 60 V DC









    Input







                          Input signal
                          4 ~ 20mA, HART





                          Insulation resistance
                          approx. 50Ω





                          Available voltage
                          open-circuit voltage ≤ 26V; voltage: ≥ 22V at 20mA









    Output







                          Output signal
                          4 ~ 20mA, HART





                          Load resistance
                          RL ≤ 550 Ω









    Transfer characterisics







                          Accuracy
                          0.1%F.S.





                          Temperature drift
                          30 ppm/℃









    General parameters







                          Response time
                          ≤ 2 ms





                          Power dissipation
                          1.8 W









    EMC data







                          Electromagnetic compatibility
                          IEC 61326-3-1





                          Dielectric strength
                          ≥ 1500V AC (Input /Output/Power supply)





                          Insulation resistance
                          ≥ 100 MΩ (Input /Output/Power supply)









    Operating conditions







                          Operation temperature
                          -20 ℃ ~ +60 ℃





                          Storage temperature
                          -40 ℃ ~ +80 ℃









    Mechanical specifications







                          Connection method
                          Screw connection





                          Dimension
                          12.8mm (W) × 110mm (H) × 117mm (D)





                          Mounting type
                          DIN35 mm









    Certified data







                          Product approvals
                          CE, FCC























                      NPPB-DIN Bus rail power supply

     35mm standard rail












                      NPPB-BS210 I/O terminal base

    Connect the rail BUS base, external power is introduced through the terminal block of the base. If a redundant power module is selected, this terminal can be left unselected.












                      NPPB-BSC028 Dust cover

    Protect the exposed bus and split the combination as needed.












                      NPPB-SS5 Limiter

    For fixed position, standard 2 sets












                      NPPB-TS35B Fixed piece

    Material: metal iron, used for rail load-bearing reinforcement, standard 2 pieces
