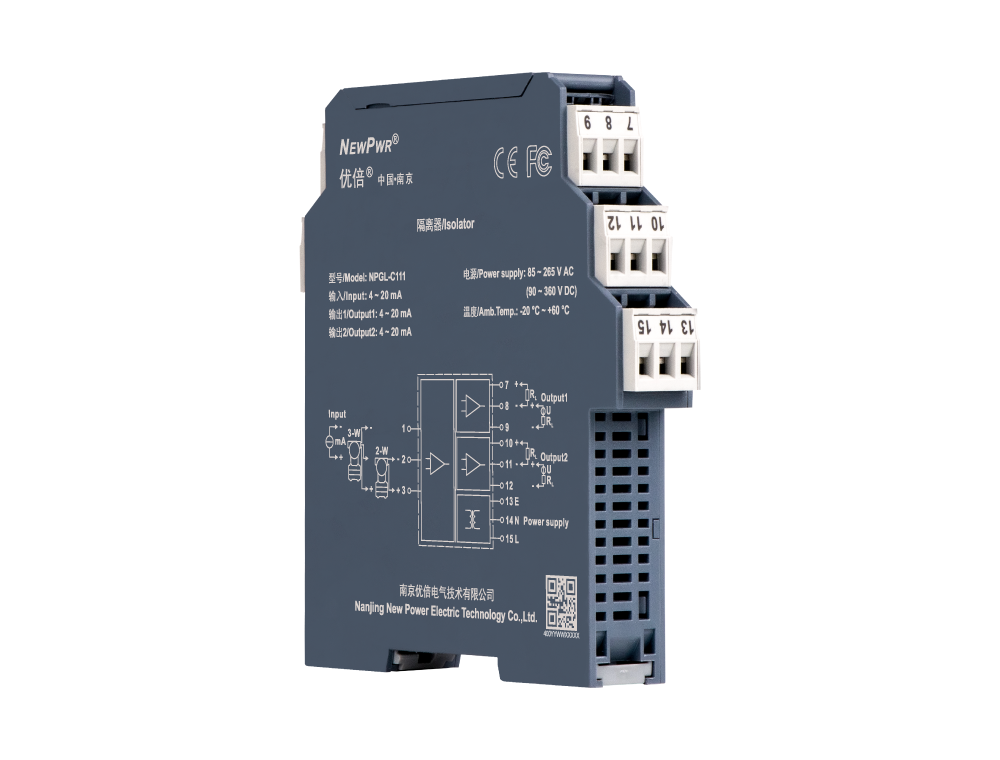

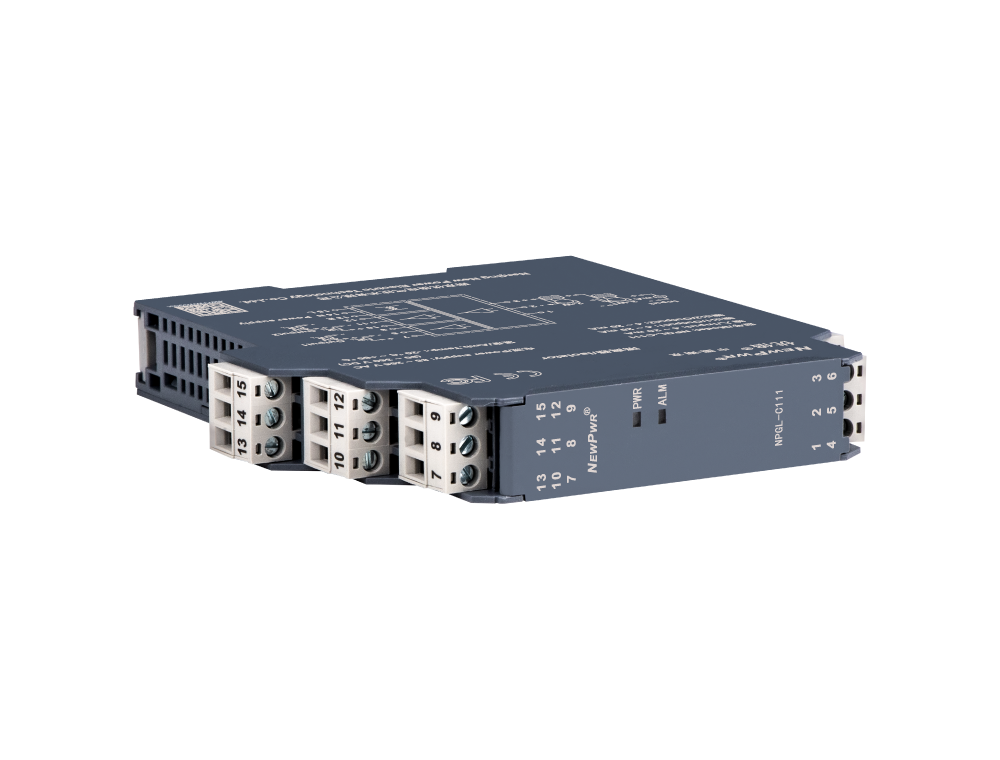

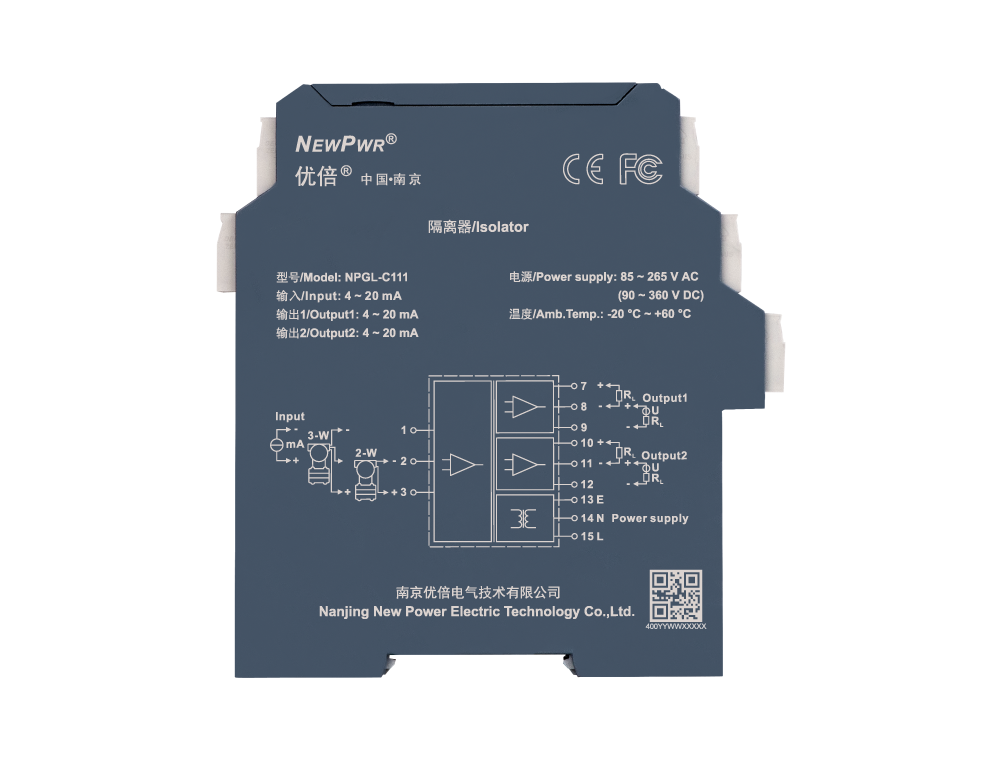

    NPGL-C111









                This isolator detects loop current and converts it to 4~20mA signals, and also provides transmitters with power. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.








    Input signal












    Output signal












    Channels












    Power Supply Mode












    HART
















                Share


















    NPGL-C111












    【Core technology】

    【Installation and disposal】



    Installation                                               Disposal














    Supply







                          Power supply
                          85V AC ~ 265 V AC (90 V DC ~ 360 V DC)









    Input







                          Input signal
                          4 ~ 20 mA





                          Line resistance
                          ≤ 100 Ω





                          Available voltage
                          open-circuit voltage ≤ 26V; voltage: ≥ 22V at 20mA









    Output







                          Output signal
                          4 ~ 20 mA





                          Load resistance
                          RL ≤ 550 Ω









    Transfer characterisics







                          Accuracy
                          0.1 %F.S.





                          Temperature drift
                          30 ppm/℃









    General parameters







                          Response time
                          ≤ 500 ms





                          Power dissipation
                          ≤ 2.5 W









    EMC data







                          Electromagnetic compatibility
                          IEC 61326-3-1





                          Dielectric strength
                          ≥ 1500V AC (Input /Output/Power supply)





                          Insulation resistance
                          ≥ 100 MΩ (Input /Output/Power supply)









    Operating conditions







                          Operation temperature
                          -20 ℃ ~ +60 ℃





                          Storage temperature
                          -40 ℃ ~ +80 ℃









    State







                          Output states
                          Whatever input fault status (except breakage or short circuit, the output is 0V/mA), the output follows the input within measuring range. And the maximum value would not exceed the 110% of the upper limit of the measuring range.









    Mechanical specifications







                          Connection method
                          Screw connection





                          Dimension
                          17.8mm (W) × 110mm (H) × 117mm (D)





                          Mounting type
                          DIN35 mm









    Certified data







                          Product approvals
                          CE, FCC
