                                        CN

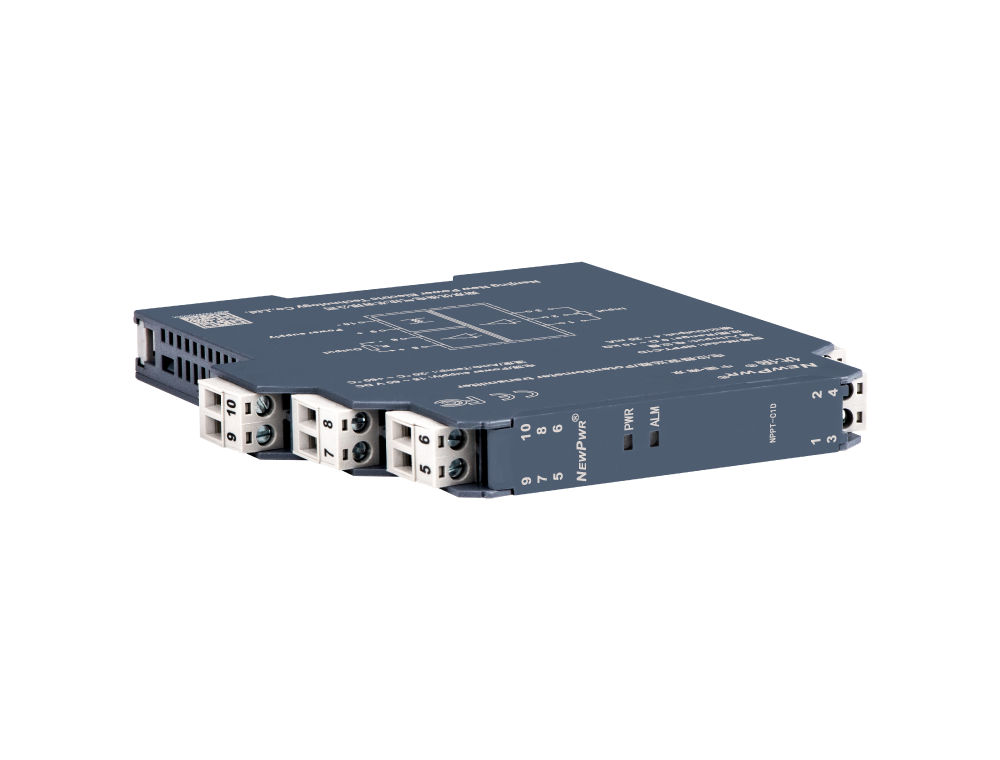

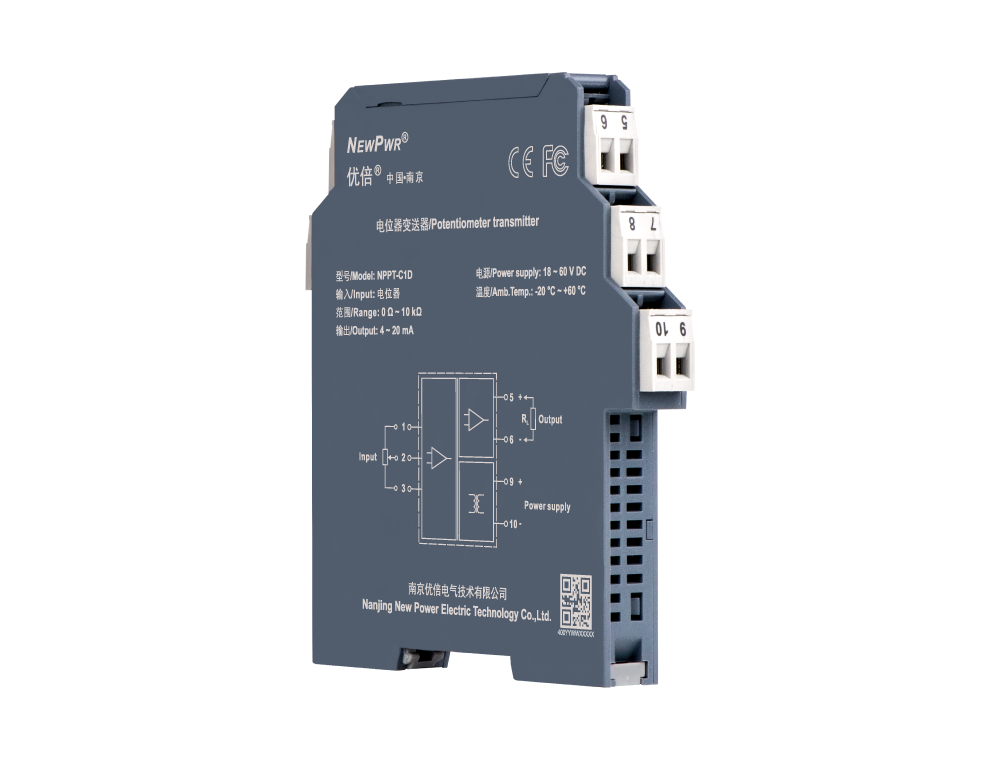

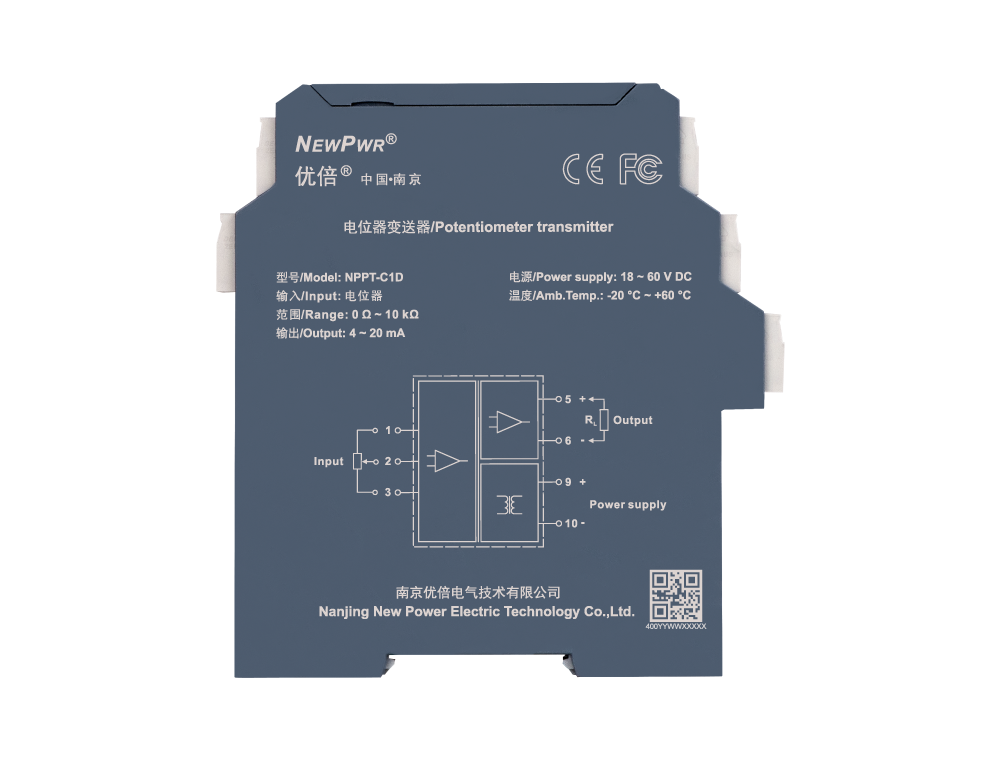

    NPPT-C1D









                This potentiometer transmitter converts the 3-wire potentiometer signals to 4~20mA signals. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.








    Input signal












    Output signal












    Channels












    Power Supply Mode

















                Share


















    NPPT-C1D












    【Core technology】

    【Installation and disposal】



    Installation                                               Disposal














    Supply







                          Power supply
                          18 ~ 60 V DC









    Input







                          Input signal
                          3-wire potentiometer: 0 Ω ~ 10 kΩ









    Output







                          Output signal
                          4 ~ 20 mA





                          Load resistance
                          RL ≤ 550 Ω









    Transfer characterisics







                          Accuracy
                          0.1 %F.S.





                          Temperature drift
                          30 ppm/℃









    General parameters







                          Response time
                          ≤ 500 ms





                          Power dissipation
                          0.8 W









    EMC data







                          Electromagnetic compatibility
                          IEC 61326-3-1





                          Dielectric strength
                          ≥ 1500V AC (Input /Output/Power supply)





                          Insulation resistance
                          ≥ 100 MΩ (Input /Output/Power supply)









    Operating conditions







                          Operation temperature
                          -20 ℃ ~ +60 ℃





                          Storage temperature
                          -40 ℃ ~ +80 ℃









    State







                          Output states
                          Whatever input fault status (except breakage), the output follows the input within measuring range. And the maximum value would not exceed the 110% of the upper limit of the measuring range.









    Mechanical specifications







                          Connection method
                          Screw connection





                          Dimension
                          12.8mm (W) × 110mm (H) × 117mm (D)





                          Mounting type
                          DIN35 mm









    Certified data







                          Product approvals
                          CE, FCC























                      NPPB-DIN Bus rail power supply

     35mm standard rail












                      NPPB-BS210 I/O terminal base

    Connect the rail BUS base, external power is introduced through the terminal block of the base. If a redundant power module is selected, this terminal can be left unselected.












                      NPPB-BSC028 Dust cover

    Protect the exposed bus and split the combination as needed.












                      NPPB-SS5 Limiter

    For fixed position, standard 2 sets












                      NPPB-TS35B Fixed piece

    Material: metal iron, used for rail load-bearing reinforcement, standard 2 pieces
